Front Door Key Cylinder Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the rod.
  2. Remove the front outer handle.
  3. Turn the key cylinder in the direction indicated by the arrow and move the tab to the notch.
  4. Pull the key cylinder outward to remove it.
  5. Install in the reverse order of removal.

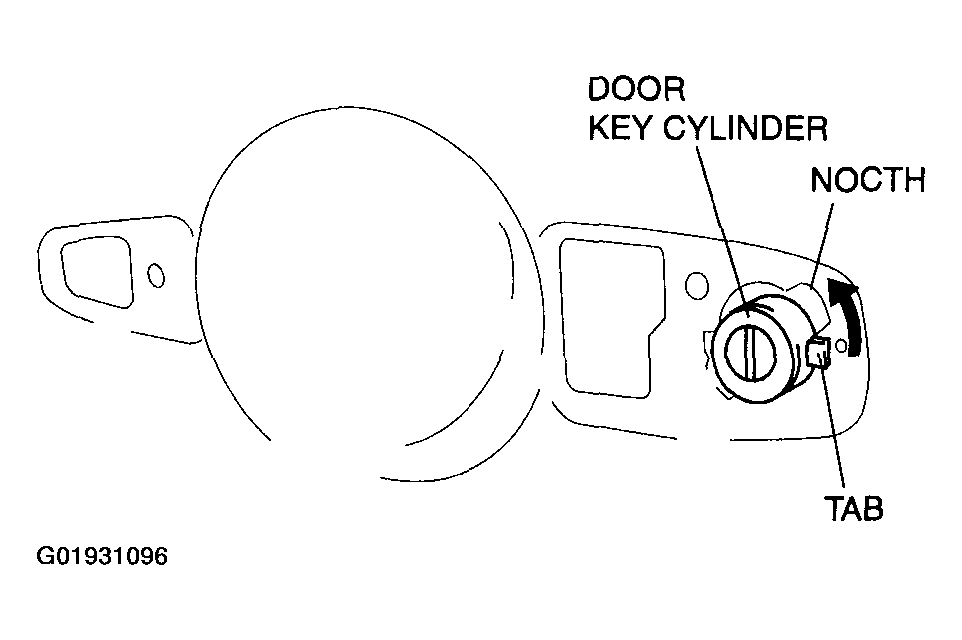

    Fig 1: Moving Tab To Notch And Removing Key Cylinder
    G01931096Courtesy of MAZDA MOTORS CORP.
