Toe Adjustment

WARNING: This page is about a different car, the 2004 Mazda B4000, 2004 Mazda B3000, and 2004 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start the engine and center the steering wheel.

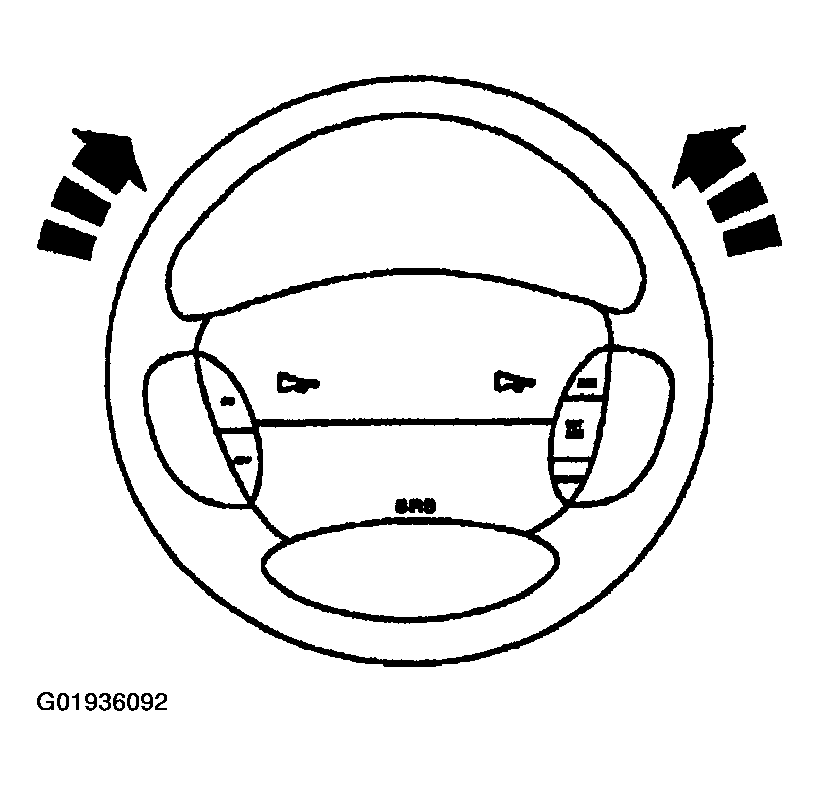

    Fig 1: Centering Steering Wheel
    G01936092Courtesy of MAZDA MOTORS CORP.
  2. Turn the engine off, and hold the steering wheel in the "straight forward" position by attaching a rigid link from the steering wheel to the brake pedal.
  3. Check the toe settings; see TECHNICAL DATA .
    NOTE:
    • Do not allow the steering gear bellows to twist when the front wheel spindle tie rod is rotated.
  4. Remove the clamps.

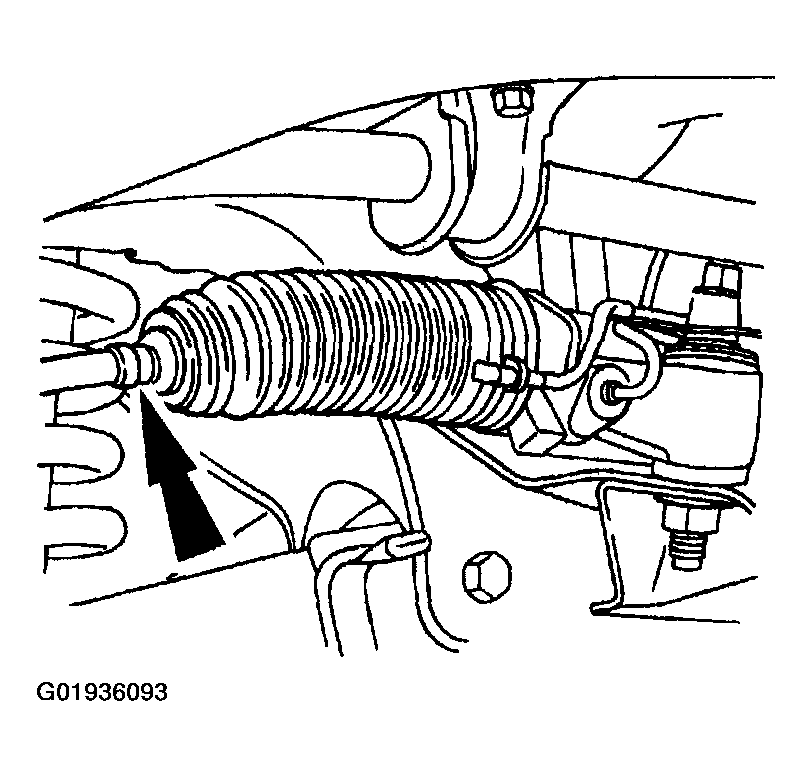

    Fig 2: Removing Clamps
    G01936093Courtesy of MAZDA MOTORS CORP.
  5. Loosen the nuts. Clean and lubricate the nut(s) and front wheel spindle tie rod threads.

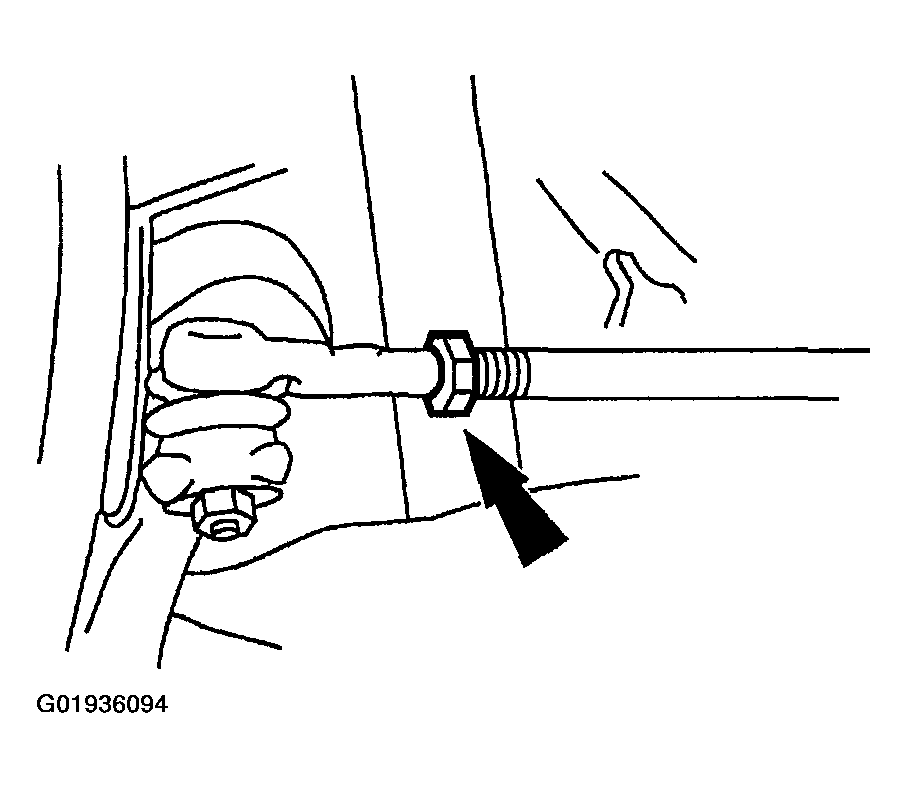

    Fig 3: Cleaning And Lubricating Nut(s) And Front Wheel Spindle Tie Rod Threads
    G01936094Courtesy of MAZDA MOTORS CORP.
  6. Rotate the front wheel spindle tie rods.
  7. Tighten the nuts.

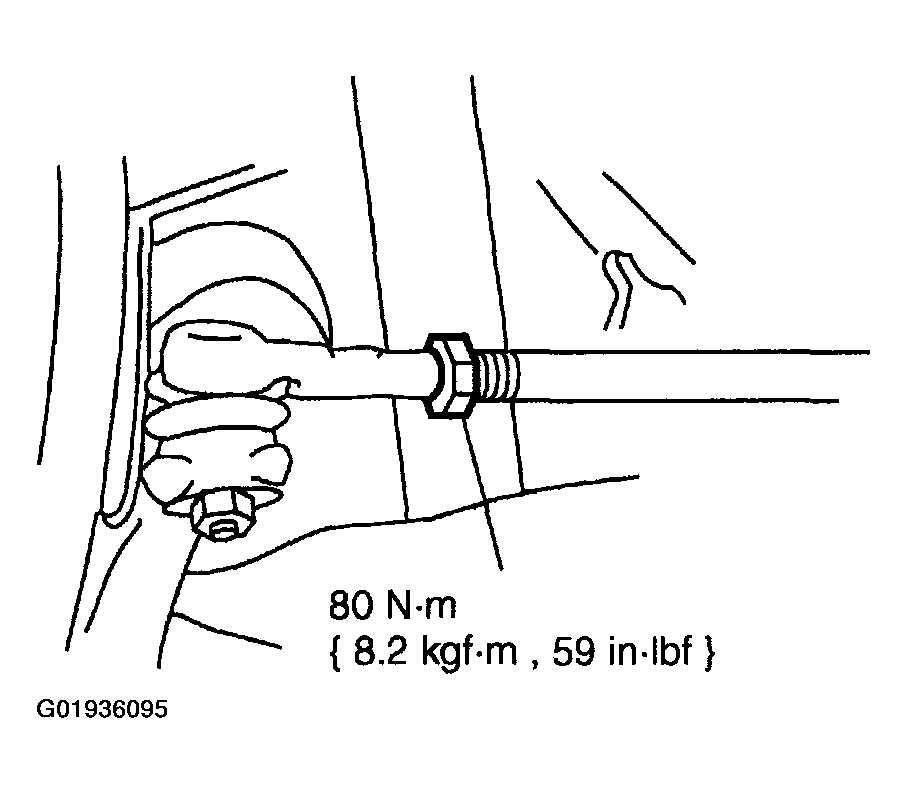

    Fig 4: Tightening Tie Rod Nuts
    G01936095Courtesy of MAZDA MOTORS CORP.
  8. Install the clamps.
  9. Recheck the toe settings; See TECHNICAL DATA .
