Sliding Door Lock And Opener Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Close the rear door glass completely.
  2. Disconnect the negative battery cable.
  3. Remove the sliding door trim. (See SLIDING DOOR TRIM REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in the figures.
    Fig 1: Removing/Installing Sliding Door Lock & Opener (Legend)
    G00991307Courtesy of MAZDA MOTORS CORP.

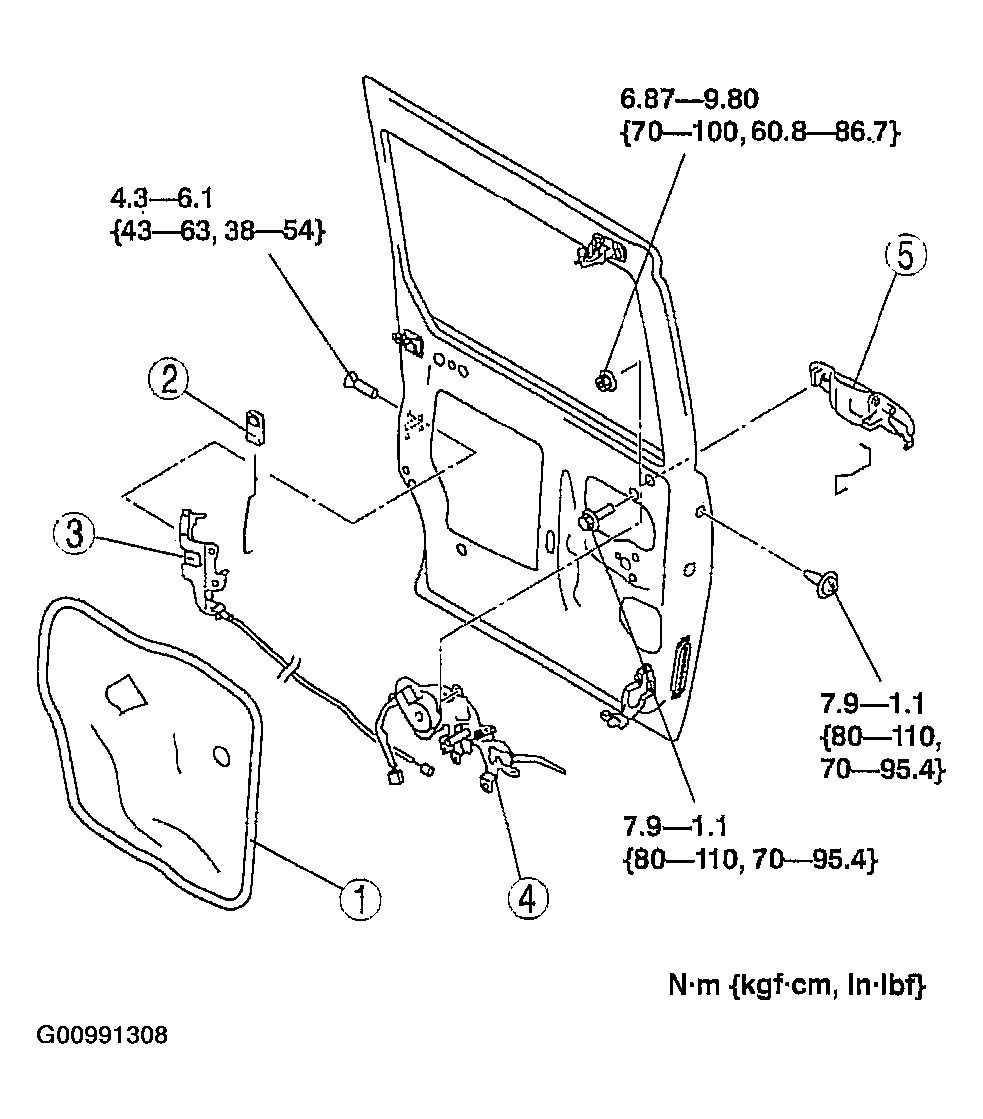

    Fig 2: Removing/Installing Sliding Door Lock & Opener
    G00991308Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
