Liftgate Lock Cylinder Switch Inspection

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the liftgate lock cylinder switch connector.
  2. Inspect for continuity between the liftgate lock cylinder switch terminals using an ohmmeter.
    • If not as specified, replace the liftgate lock cylinder switch.

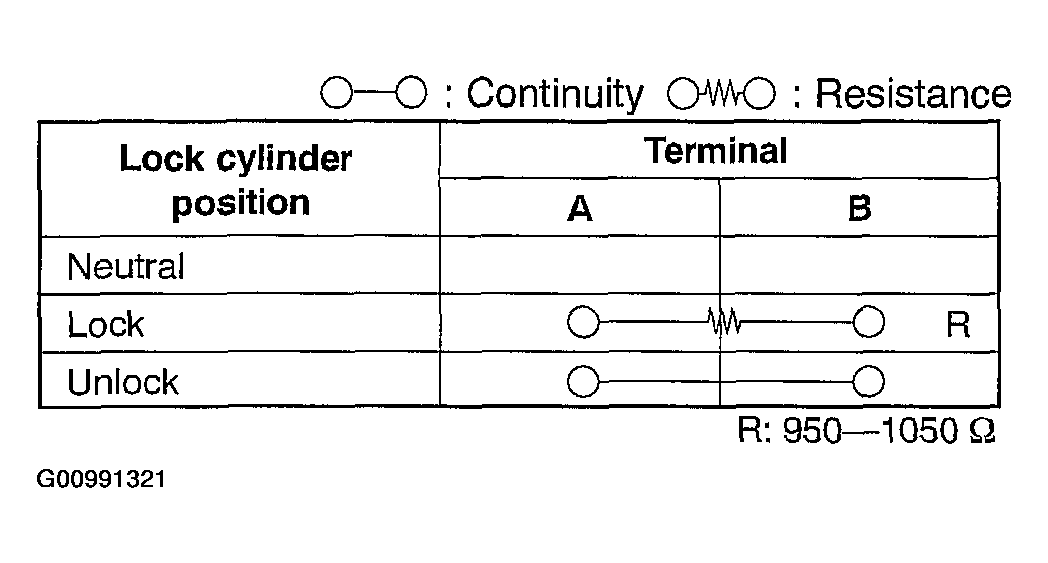

    Fig 1: Liftgate Lock Cylinder Switch Continuity Specifications
    G00991321Courtesy of MAZDA MOTORS CORP.

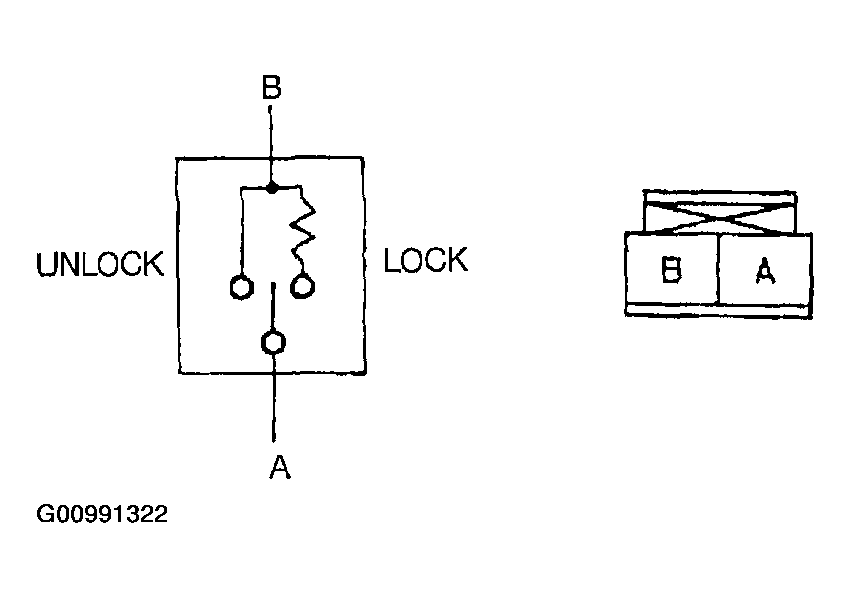

    Fig 2: Identifying Liftgate Lock Cylinder Switch Terminals
    G00991322Courtesy of MAZDA MOTORS CORP.
