Hood Switch Inspection

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the hood switch connector.
  2. Inspect for continuity between the hood switch terminals using an ohmmeter.
    • If not as specified, replace the hood switch.

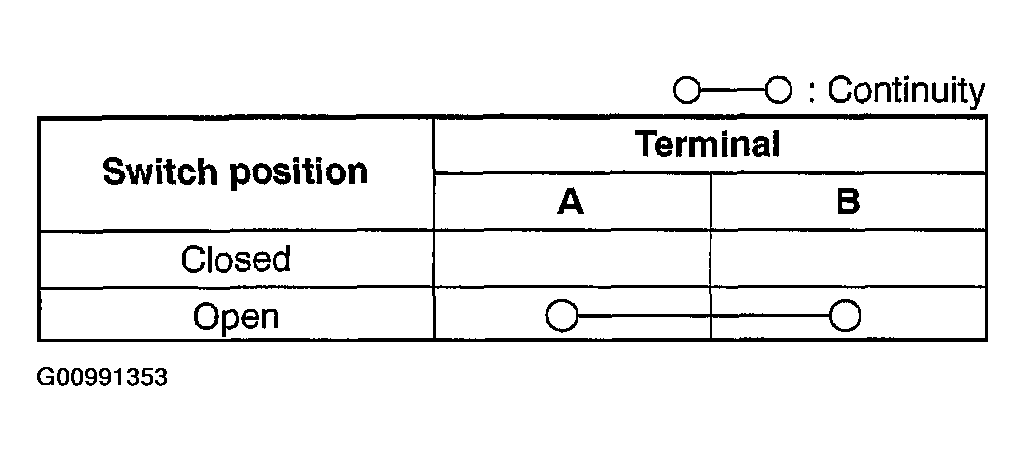

    Fig 1: Hood Switch Continuity Specifications
    G00991353Courtesy of MAZDA MOTORS CORP.

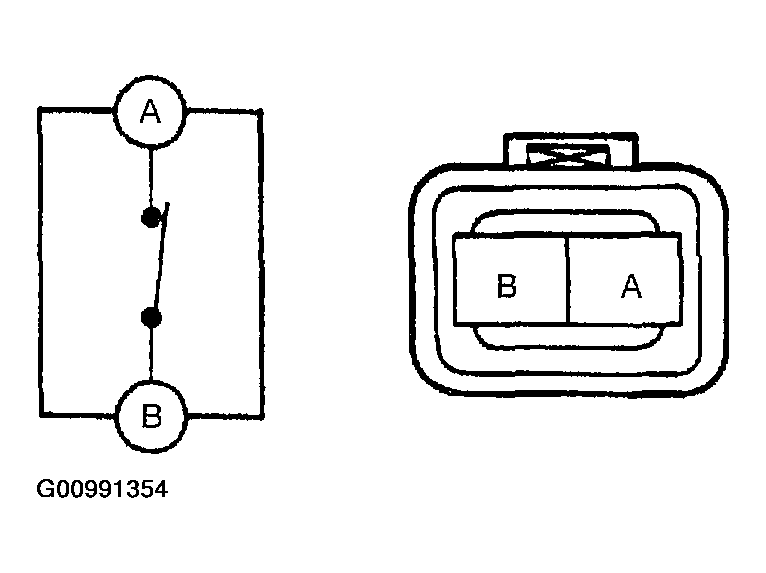

    Fig 2: Identifying Hood Switch Terminals
    G00991354Courtesy of MAZDA MOTORS CORP.
