Front Door Lock And Opener Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Close the front door glass completely.
  2. Disconnect the negative battery cable.
  3. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in the figures.

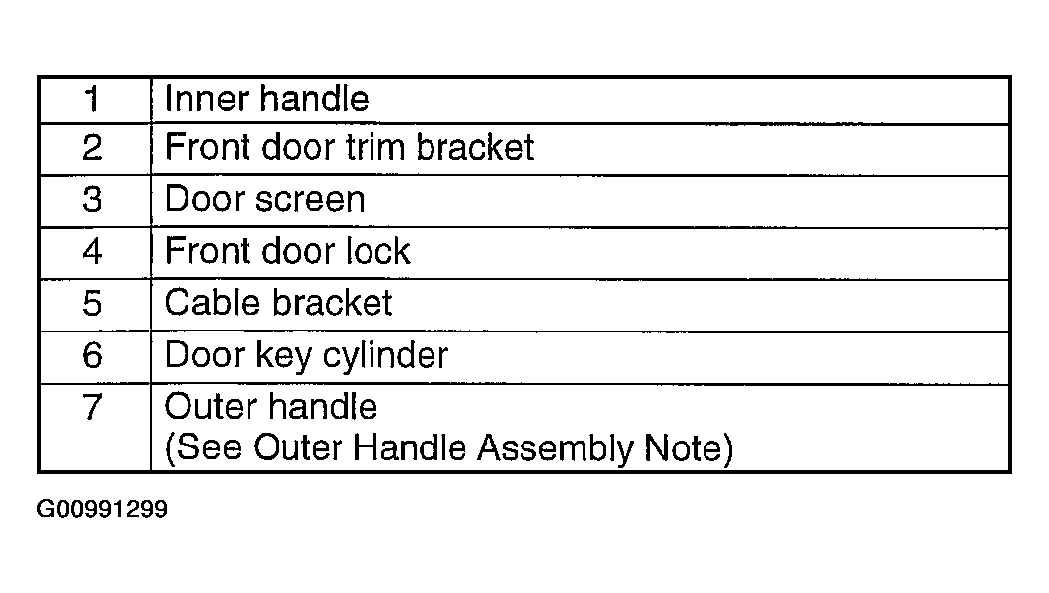

    Fig 1: Removal Order Of Front Door Lock & Opener
    G00991299Courtesy of MAZDA MOTORS CORP.

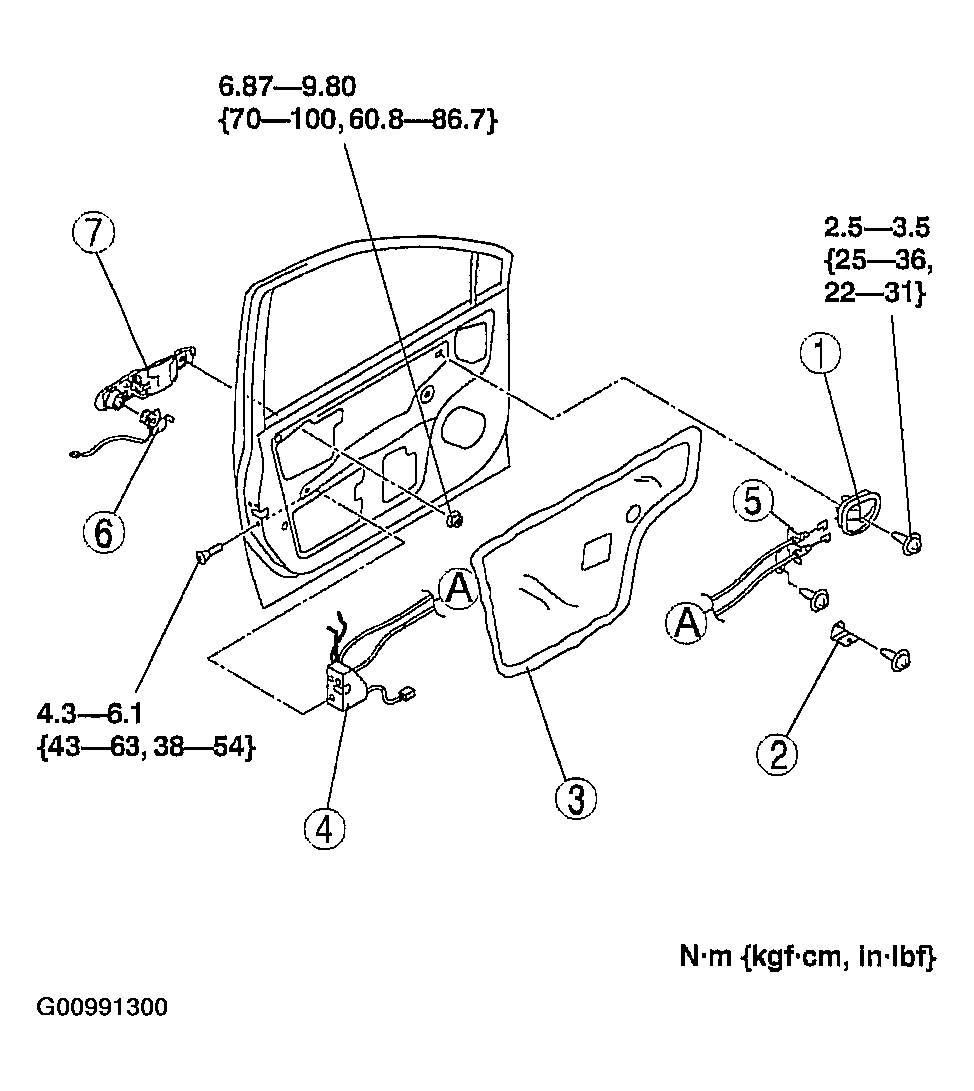

    Fig 2: Removing/Installing Front Door Lock & Opener
    G00991300Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
