Door Lock Switch Inspection

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door lock switch. (See DOOR LOCK SWITCH REMOVAL/INSTALLATION .)
  2. Inspect for continuity between the door lock switch terminals using an ohmmeter.
    • If not as specified, replace the door lock switch.

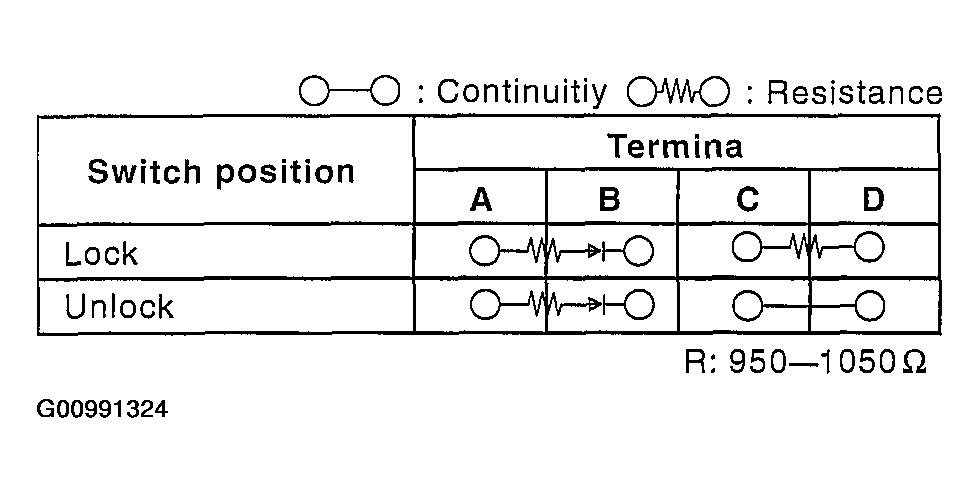

      Fig 1: Door Lock Switch Continuity Specifications
      G00991324Courtesy of MAZDA MOTORS CORP.

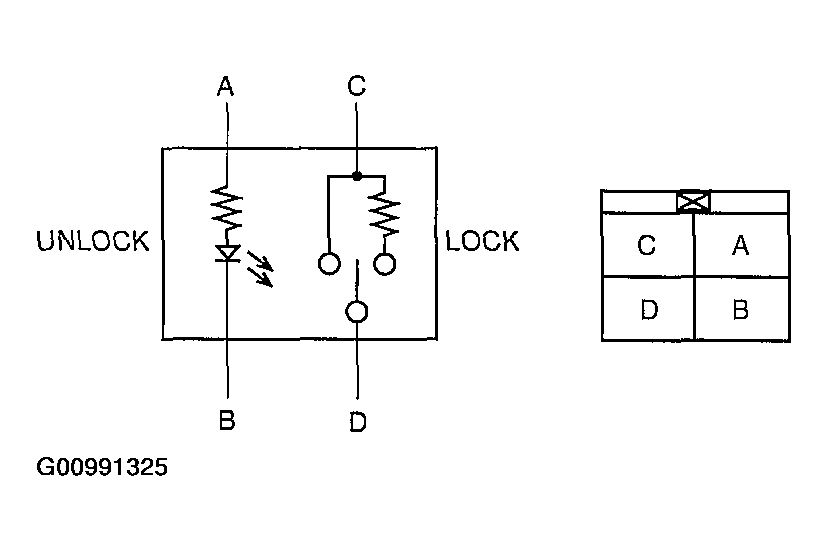

      Fig 2: Identifying Door Lock Switch Terminals
      G00991325Courtesy of MAZDA MOTORS CORP.
