Power Door Lock System Wiring Diagram

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

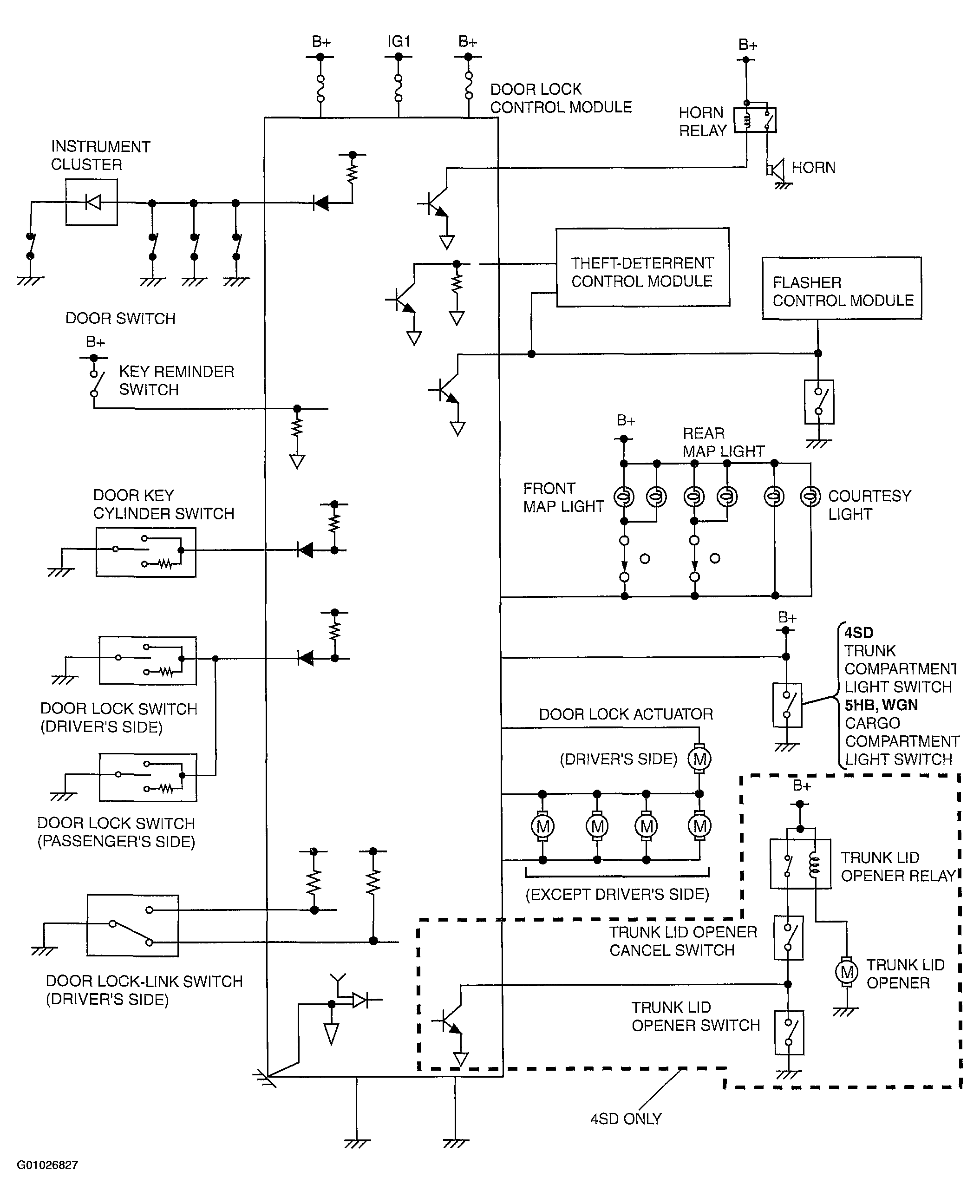

Fig 1: Power Door Lock System Circuit Diagram
G01026827Courtesy of MAZDA MOTORS CORP.
NOTE: For system wiring diagram, see POWER DOOR LOCKS .
