Door Lock Switch Inspection

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door lock switch.
  2. Inspect for continuity between the door lock switch terminals using an ohmmeter.
    • If not as specified, replace the door lock switch.

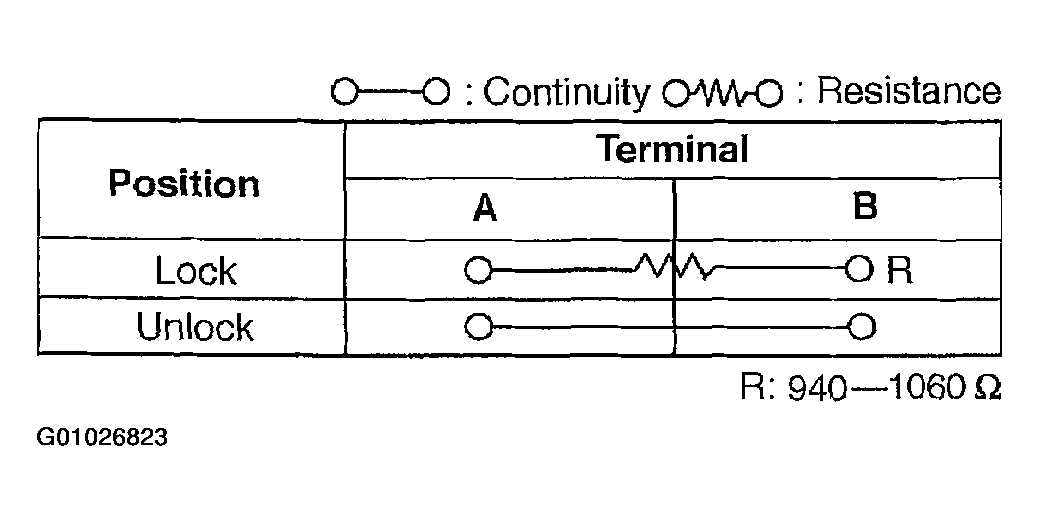

Fig 1: Identifying Door Lock Switch Continuity
G01026823Courtesy of MAZDA MOTORS CORP.

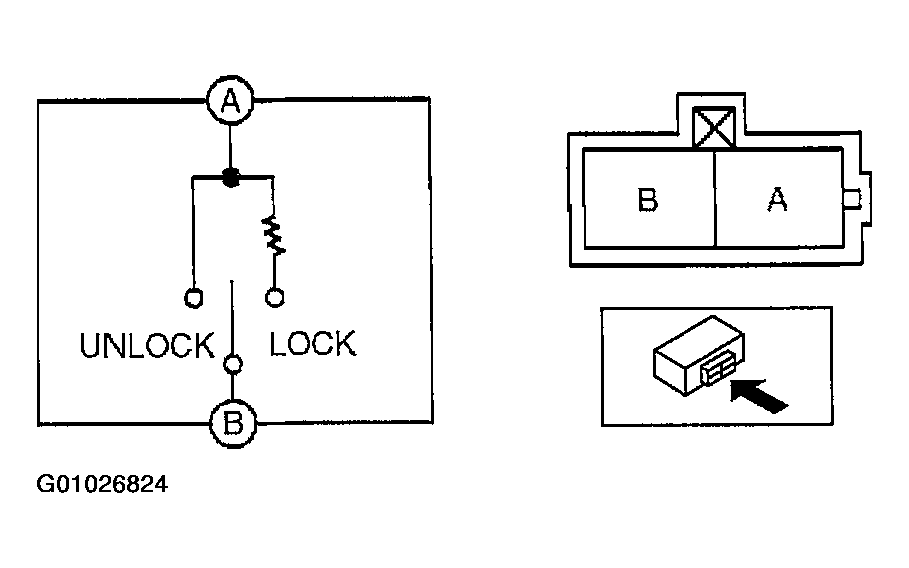

Fig 2: Identifying Door Lock Switch Connector Terminals
G01026824Courtesy of MAZDA MOTORS CORP.
