Specification (Unloaded)*

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

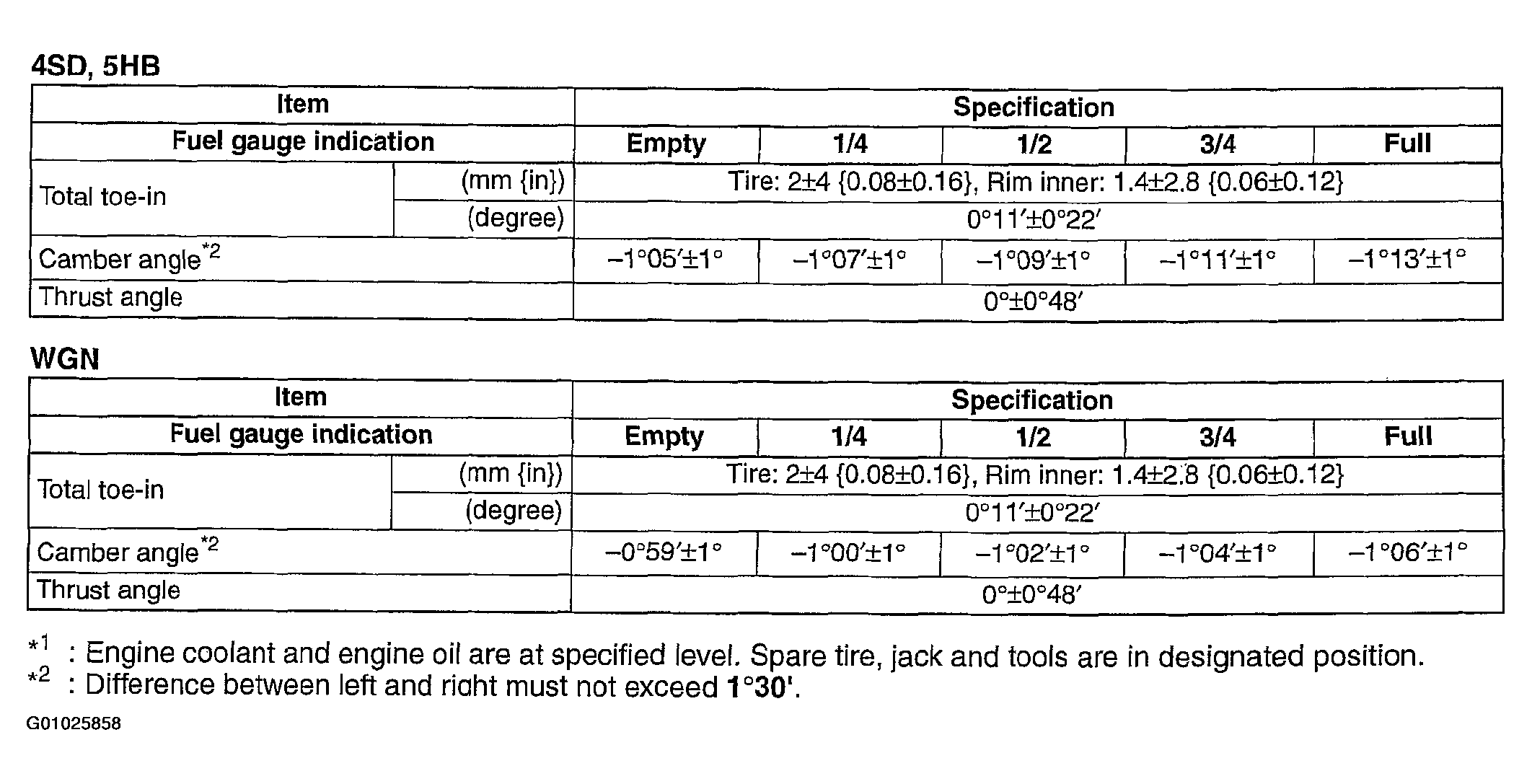

Fig 1: Rear Wheel Alignment Table

Courtesy of MAZDA MOTORS CORP.

NOTE:

Adjust the toe-in after adjusting the camber.
