Specification (Unloaded)*

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

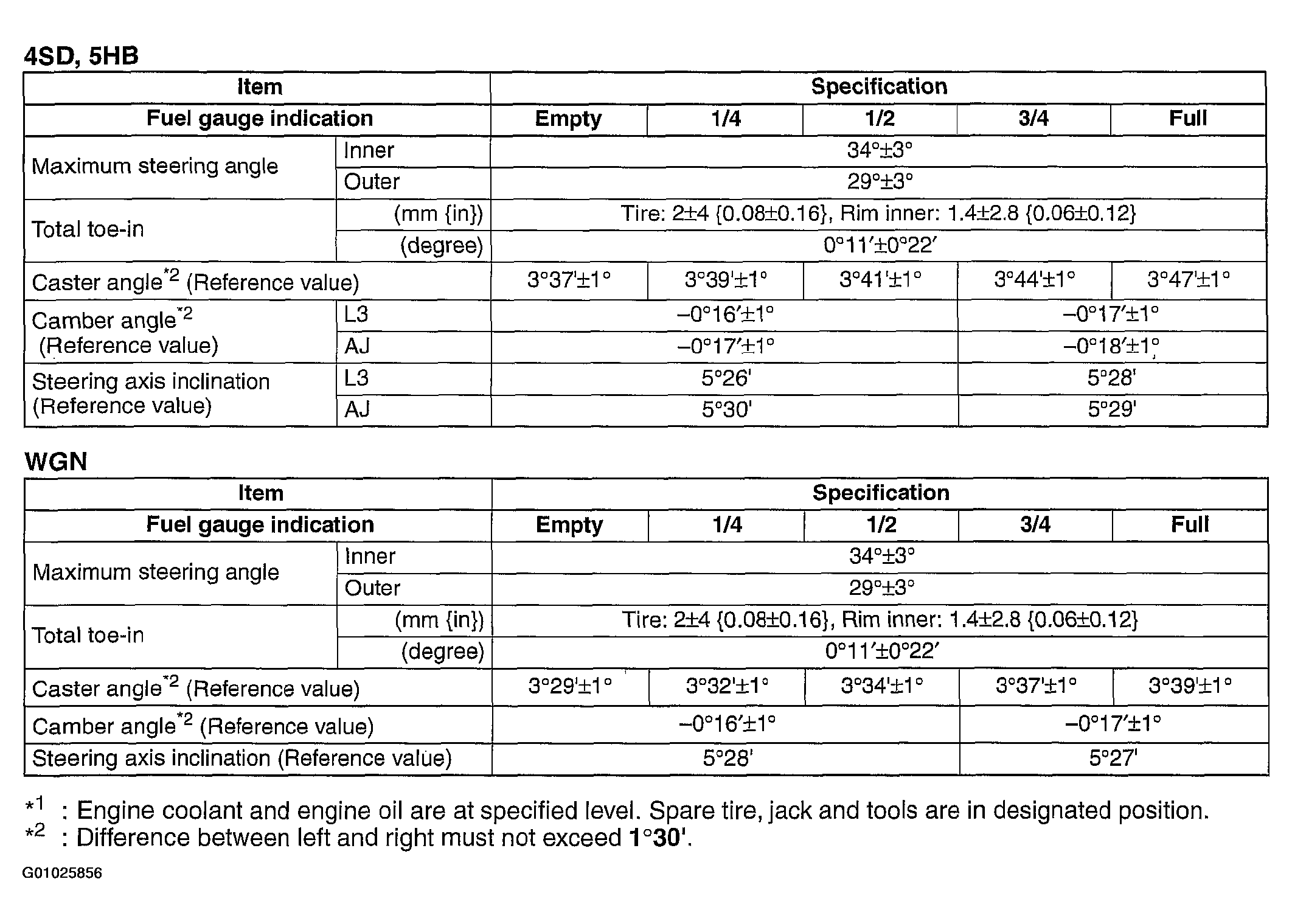

Fig 1: Front Wheel Alignment Specification Tables
G01025856Courtesy of MAZDA MOTORS CORP.
