Without Sliding Sunroof

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the illustration.
  3. Install in the reverse order of removal.

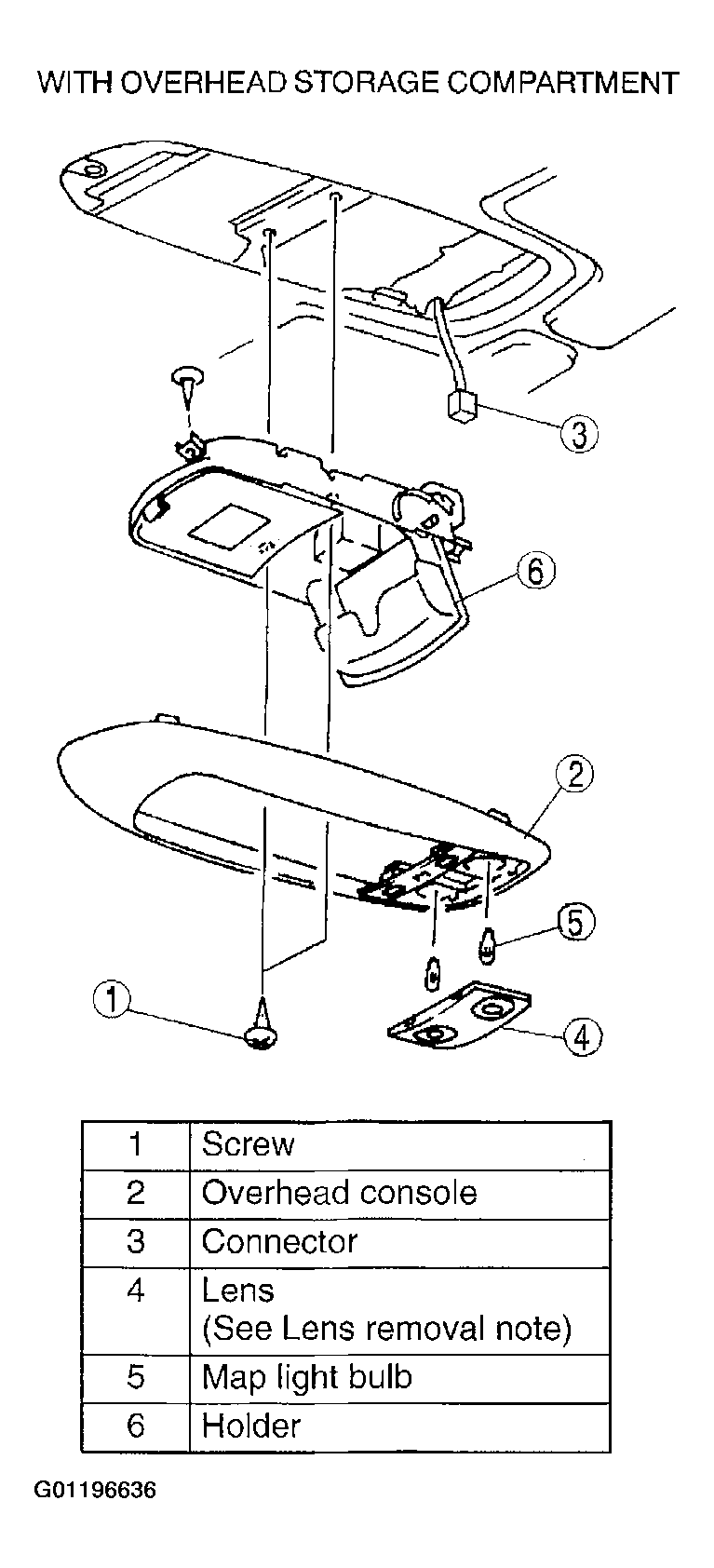

Fig 1: Removing Map Light (Without Sliding Sunroof With Overhead Storage)
G01196636Courtesy of MAZDA MOTORS CORP.

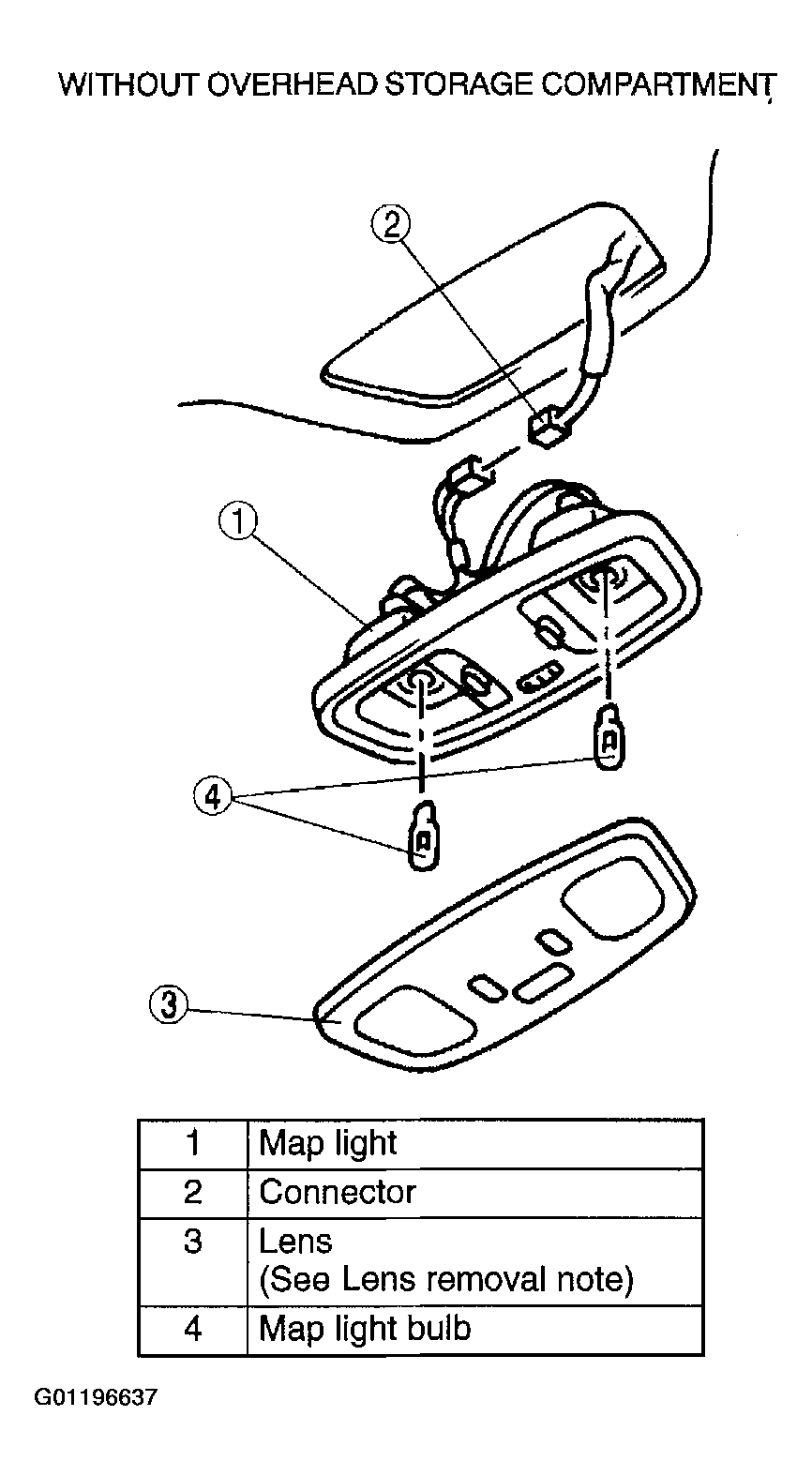

Fig 2: Removing Map Light (Without Sliding Sunroof Without Overhead Storage)
G01196637Courtesy of MAZDA MOTORS CORP.
