Door Switch Removal/Installation: Front

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the illustration.

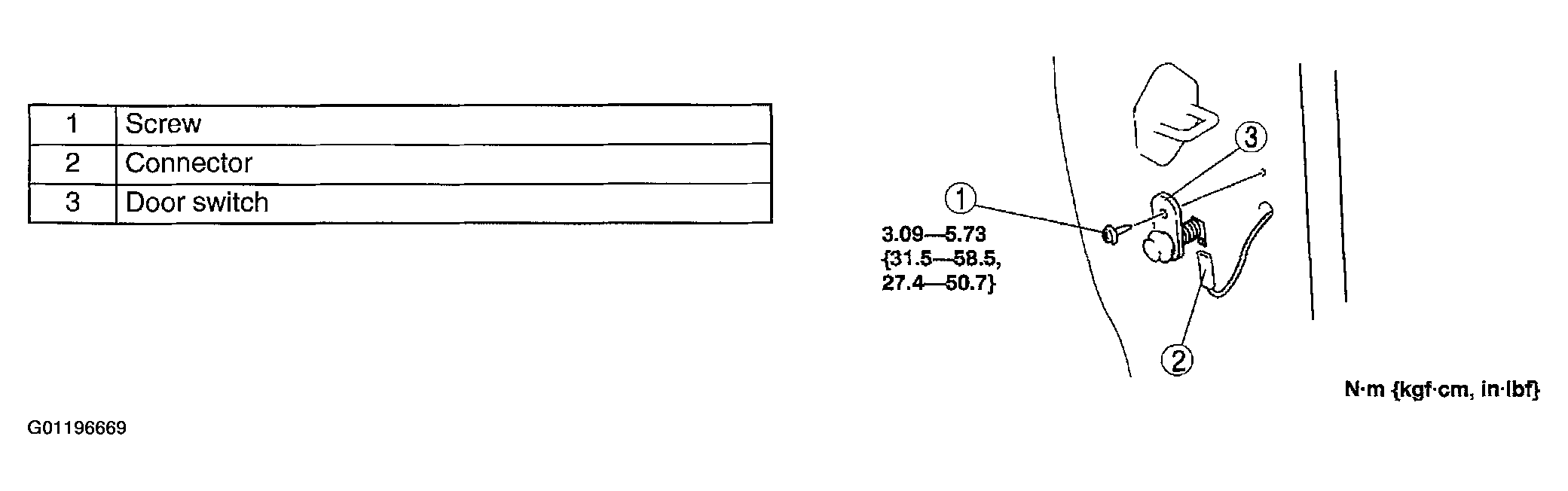

    Fig 1: Removing Front Door Switch
    G01196669Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
