Home >> Mazda >> 2007 >> B3000 Base, Automatic >> Repair and Diagnosis >> Electrical >> Starter >> Starting System >> Starter Motor Removal / Installation - 3.0L >> Notes

Starter Motor Removal / Installation - 3.0L: Notes

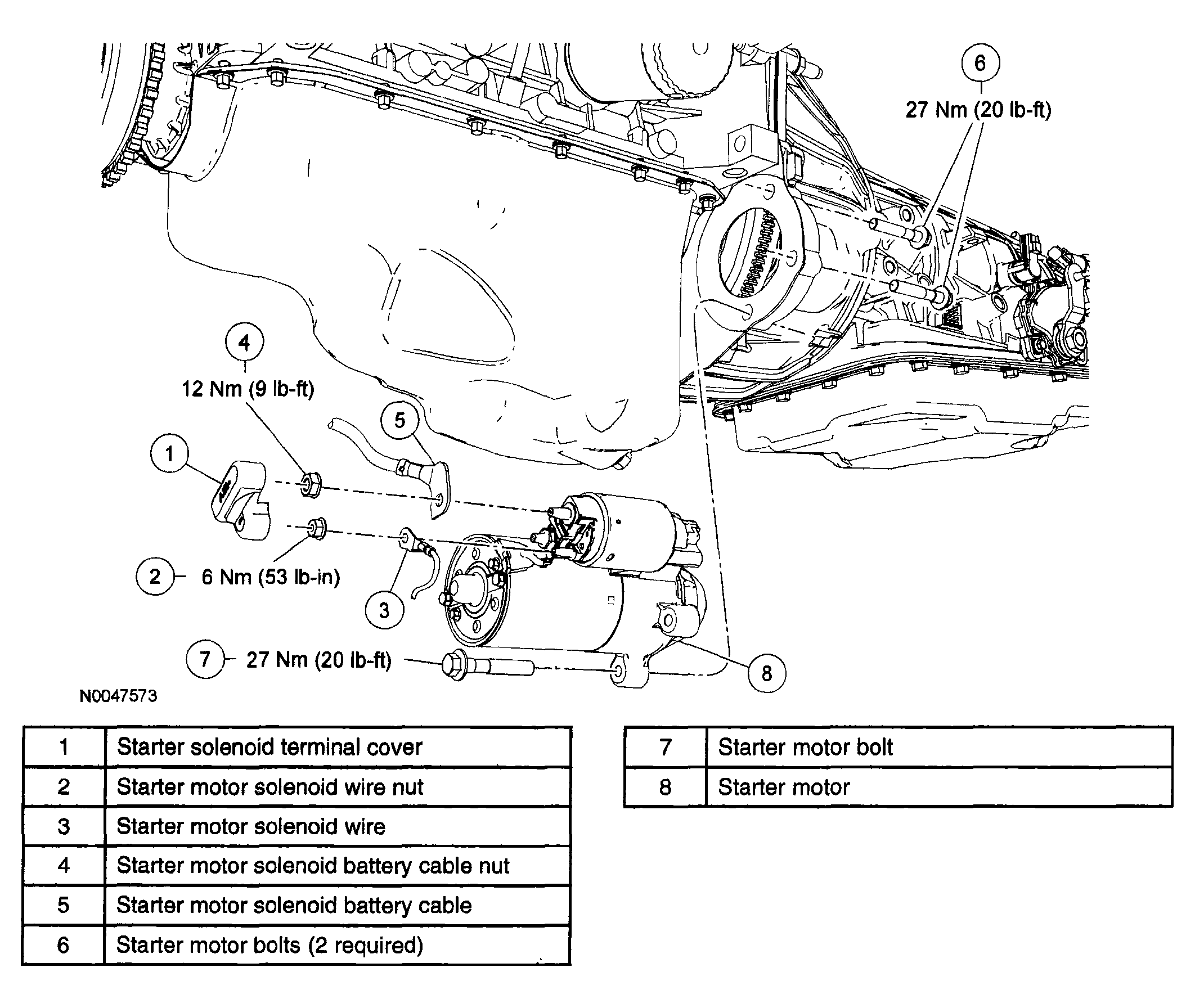

Fig 1: Starter Motor With Torque Specifications -- 3.0L

G04308317

Courtesy of MAZDA MOTORS CORP.
