Removal and Installation

  1. Remove the instrument cluster. See INSTRUMENT CLUSTER  .

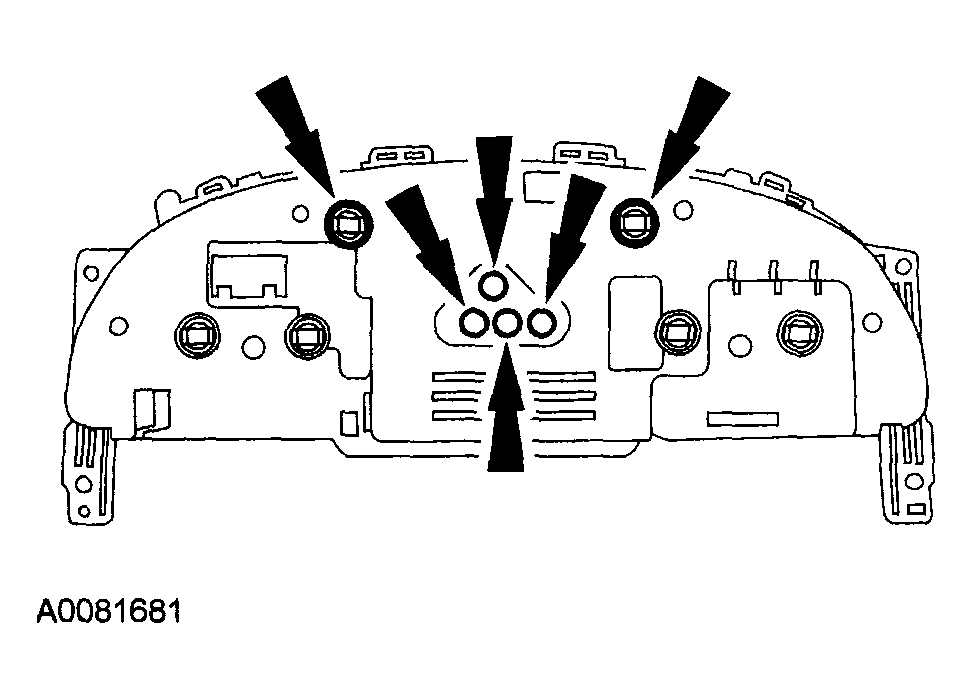

    Fig 1: Locating Warning Indicator Bulbs
    G04310576Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • To remove the warning indicator bulb, rotate the bulb one quarter turn counterclockwise and lift it straight out from the instrument cluster.
  2. Remove the warning indicator bulb in question.
  3. To install, reverse the removal procedure.
