Axle And Differential Structural View Rear (Standard)

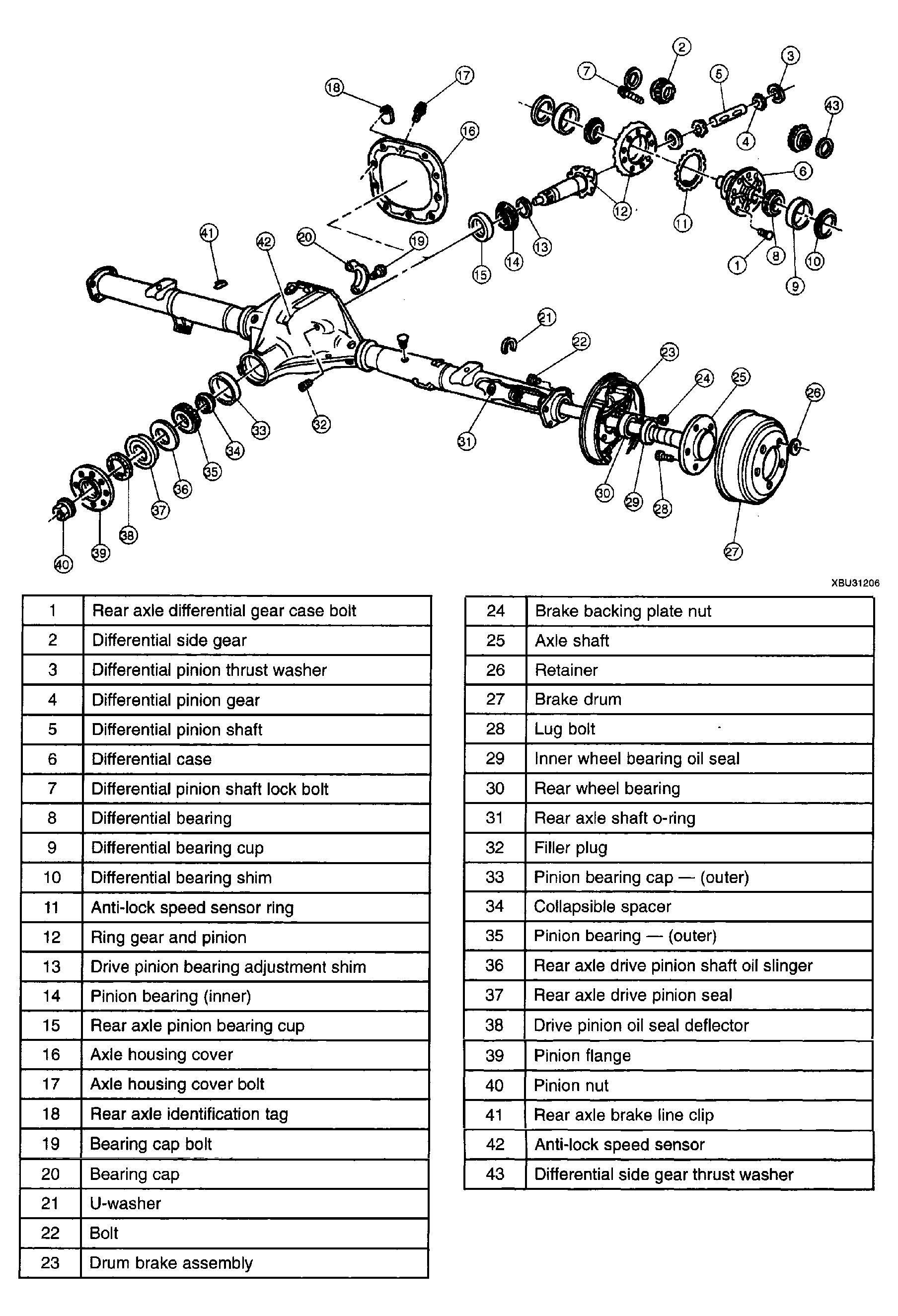

Fig 1: Identifying Exploded View - Axle And Differential Structural View Rear (Standard)

G04308764

Courtesy of MAZDA MOTORS CORP.
