Parking Brake: Notes

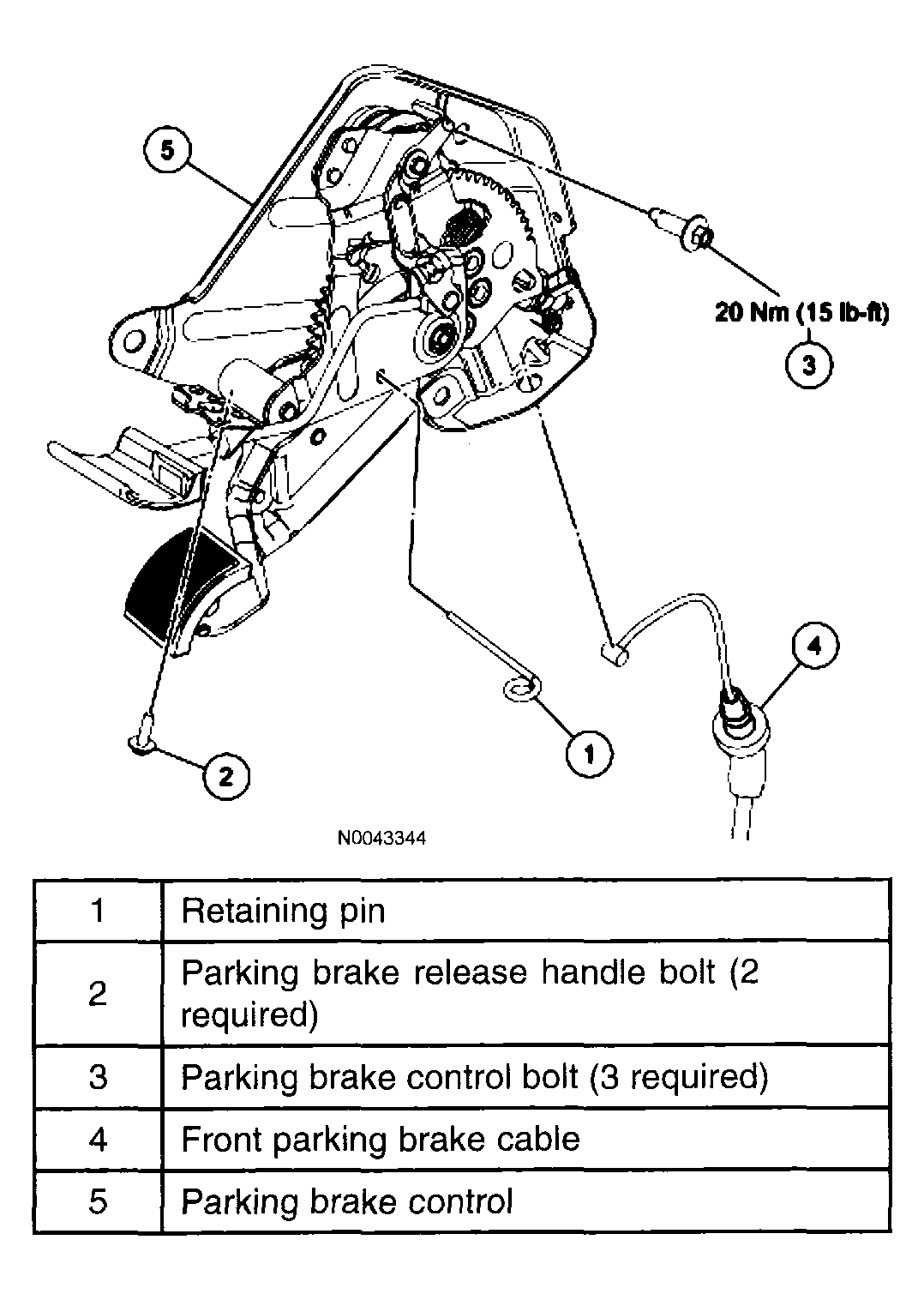

Fig 1: Parking Brake Replacement Components With Torque Specifications
G04309159Courtesy of MAZDA MOTORS CORP.
