Seat Backrest Front- Bucket And 40 Percent Disassembly / Assembly: Notes

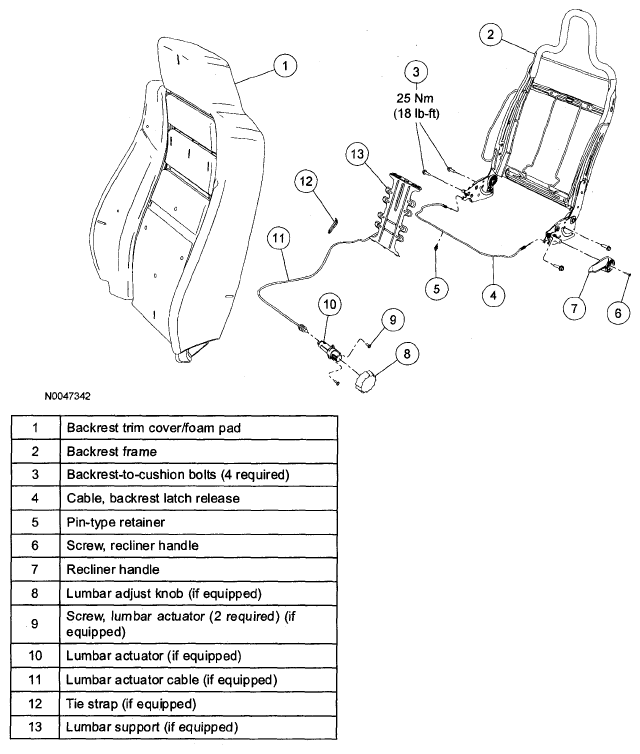

Fig 1: Exploded View Of Front Seat Backrest Components With Torque Specifications - Bucket And 40 Percent

G04931160
