Instrument Panel - Component View

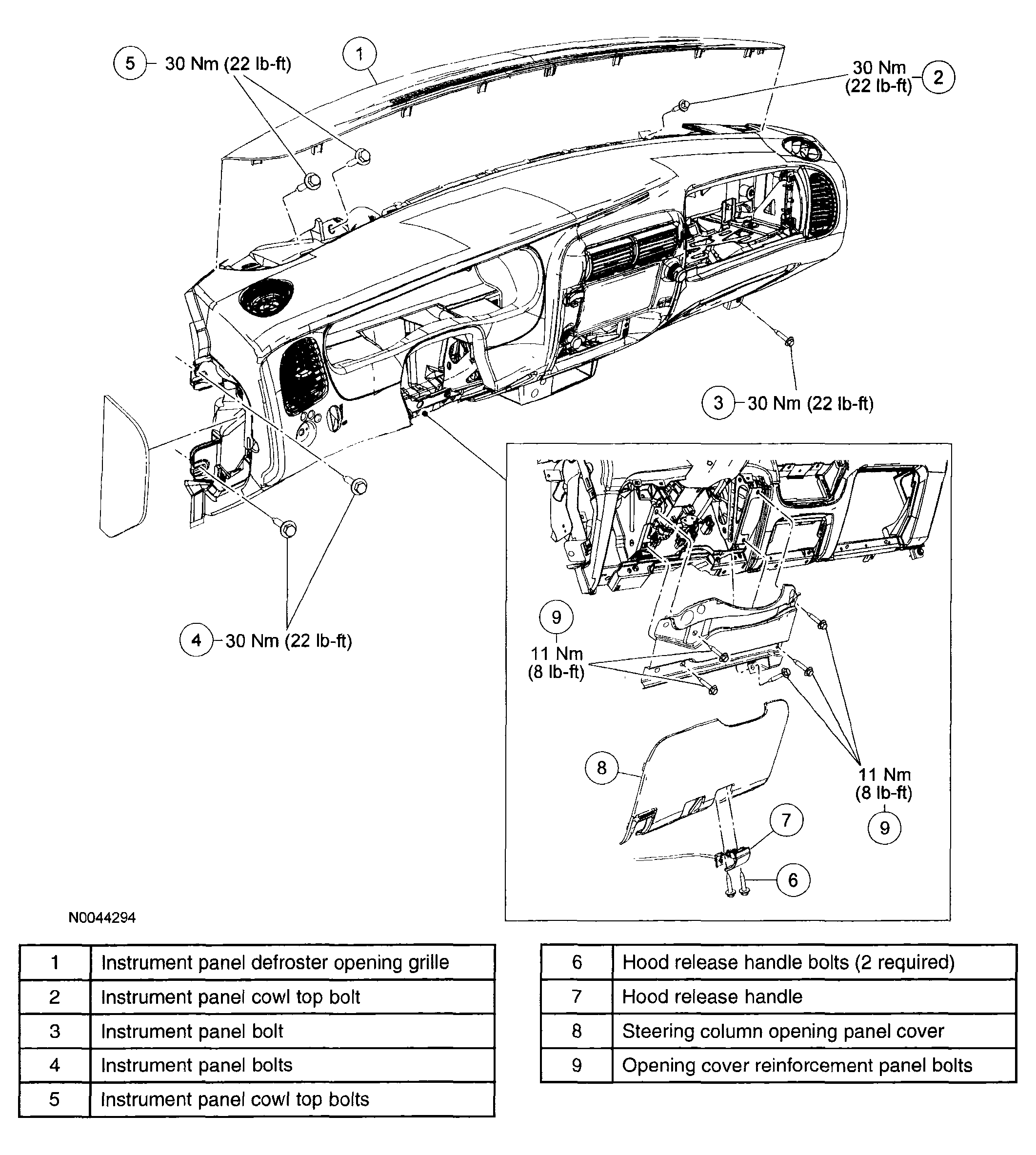

Fig 1: Component View - Instrument Panel With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
