Home >> Mazda >> 2007 >> B3000 Base, Automatic >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Interior Trim >> Floor Console >> Notes

Floor Console: Notes

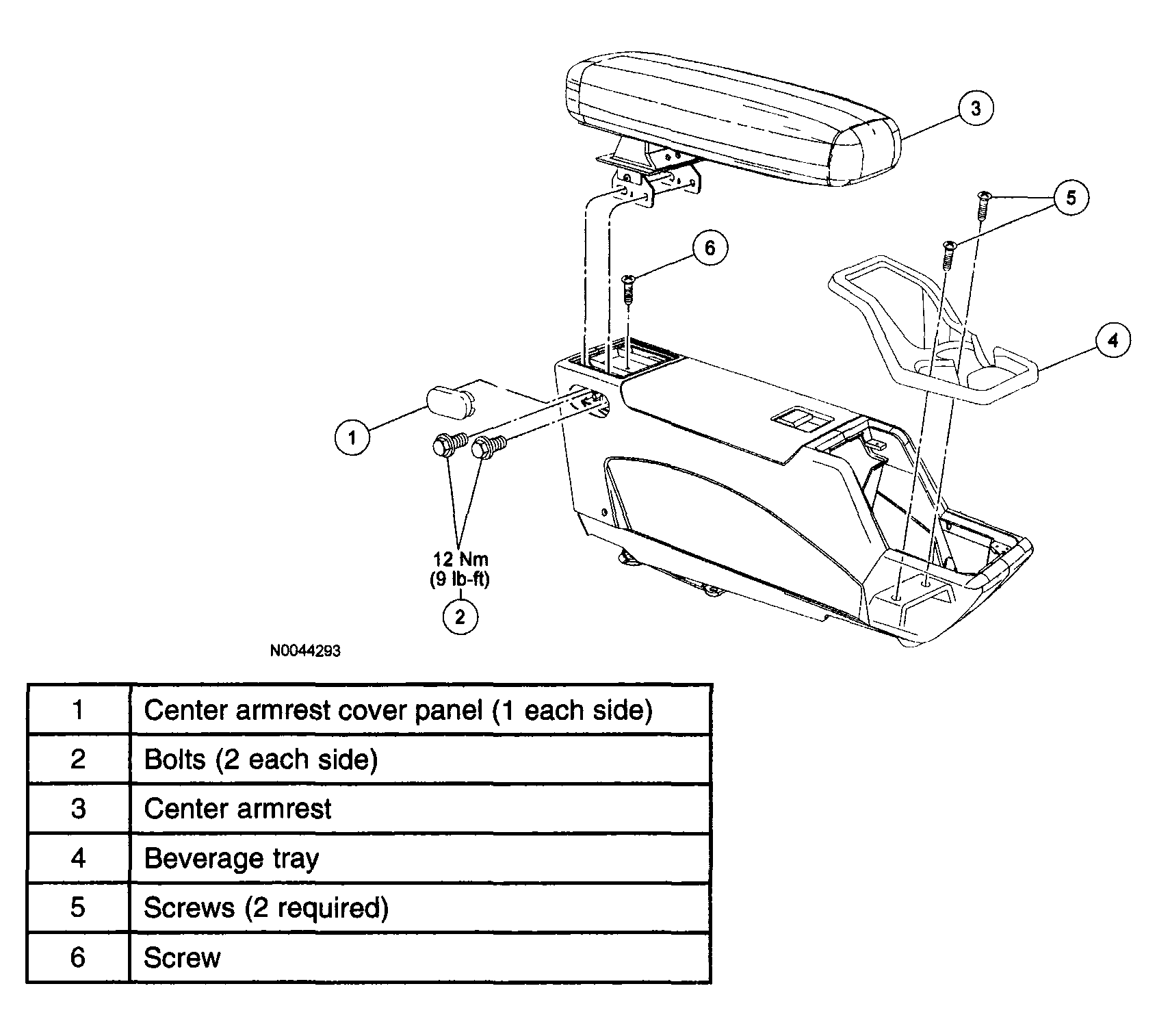

Fig 1: Removing/Installing Floor Console With Torque Specifications

G04310498

Courtesy of MAZDA MOTORS CORP.
