LEMON Manuals: Even more car manuals for everyone

Home >> Mazda >> 2007 >> B3000 Base, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Anti-Theft Systems >> Security System And Locks System >> Front Door Handles, Locks And Latches - Component View

Front Door Handles, Locks And Latches - Component View

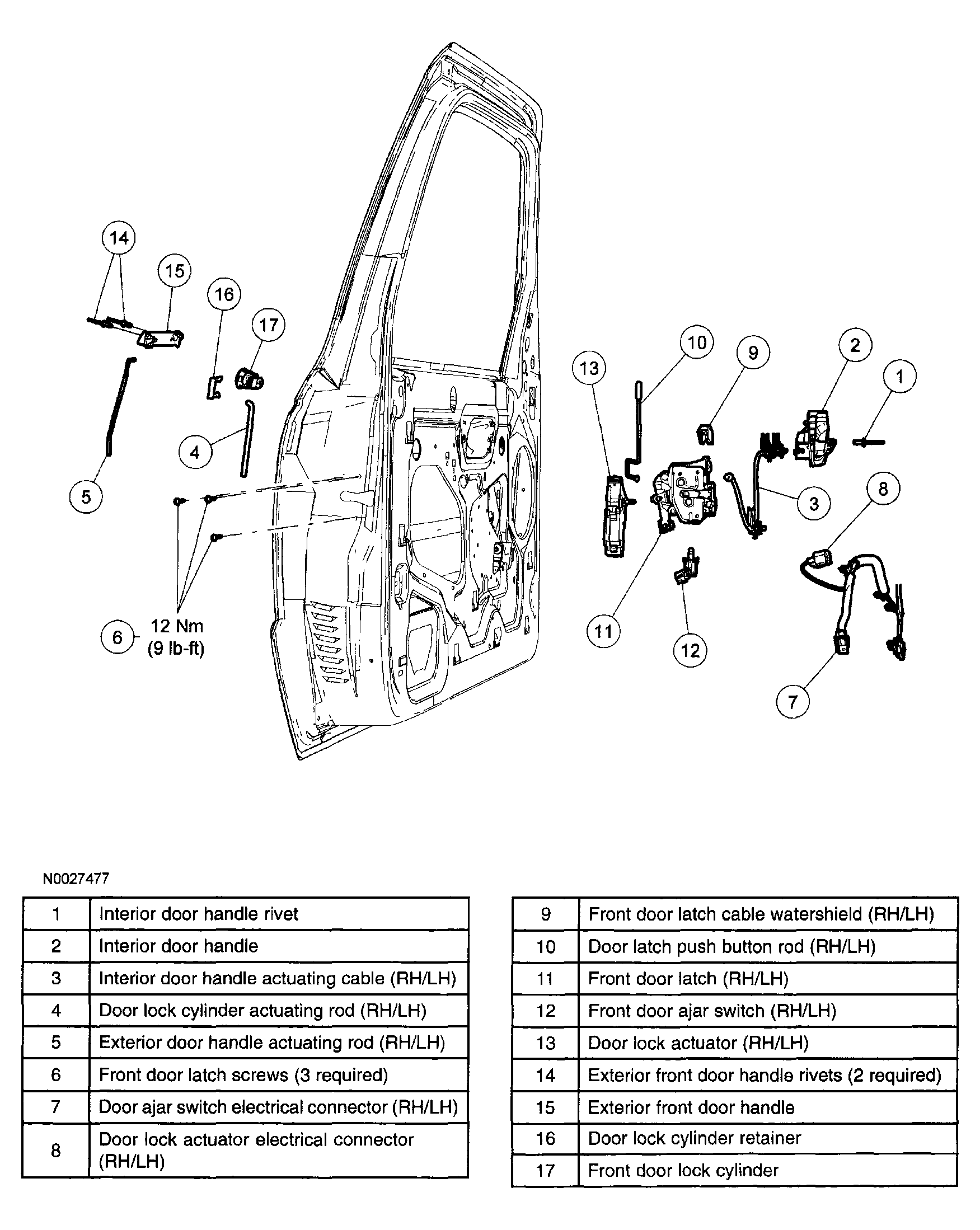

Fig 1: Identifying Front Door Handles, Locks And Latches Components With Torque Specifications

G04310423

Courtesy of MAZDA MOTORS CORP.
