Trunk Lid Opener Cancel Switch Inspection

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trunk lid open cancel switch.
  2. Inspect for continuity between the trunk lid open cancel switch terminals. See Fig 1.
  3. If not as specified, replace the trunk lid open cancel switch.

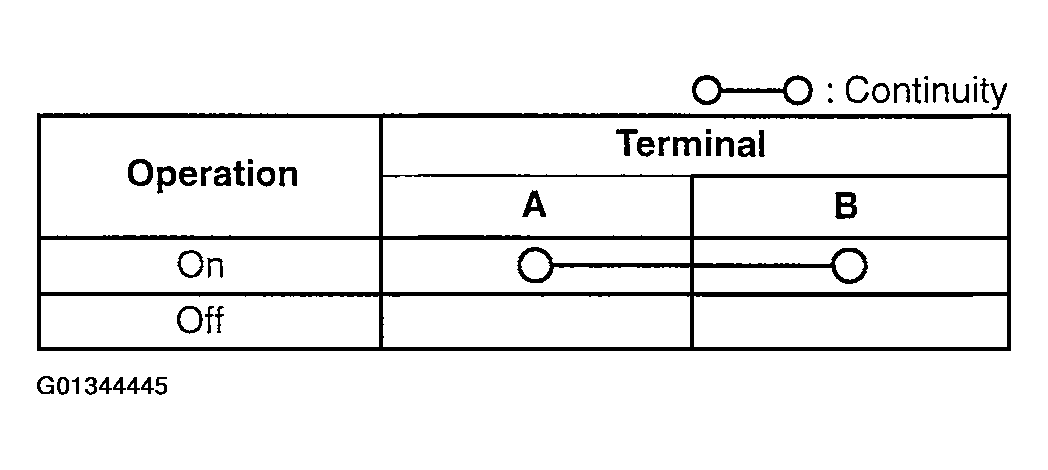

    Fig 1: Trunk Lid Opener Cancel Switch Terminal Continuity
    G01344445Courtesy of MAZDA MOTORS CORP.

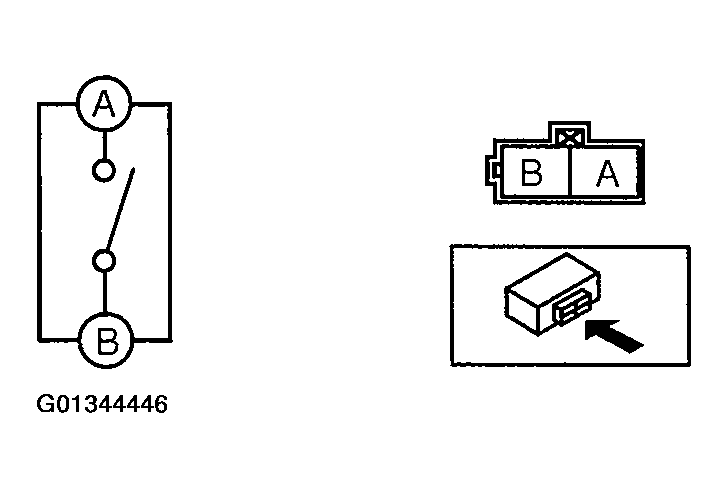

    Fig 2: Inspecting Trunk Lid Opener Cancel Switch
    G01344446Courtesy of MAZDA MOTORS CORP.
