Fuel-Filler Lid Opener Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. To remove the fuel-filler lid opener, remove the trunk side trim (LH). (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
  2. When removing the fuel-filler lid opener lever, perform the following procedure:
    1. Remove the inner scuff plate (driver's side). (See INNER SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Remove the front side trim (driver's side). (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Remove the fasteners and the wiring harness clips, and then partially peel back the floor covering so that the fuel-filler lid opener lever can be removed.
  3. When removing the fuel-filler lid opener cable, perform the following procedure:
    1. Partially peel back the trunk mat.
    2. Remove the rear seat (driver's side). (See REAR SEAT REMOVAL/INSTALLATION ).
    3. Remove the tire house trim (driver's side). (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    4. Partially peel back the floor covering so that the fuel-filler lid opener cable can be removed.
  4. Remove in the order indicated in Fig 1.

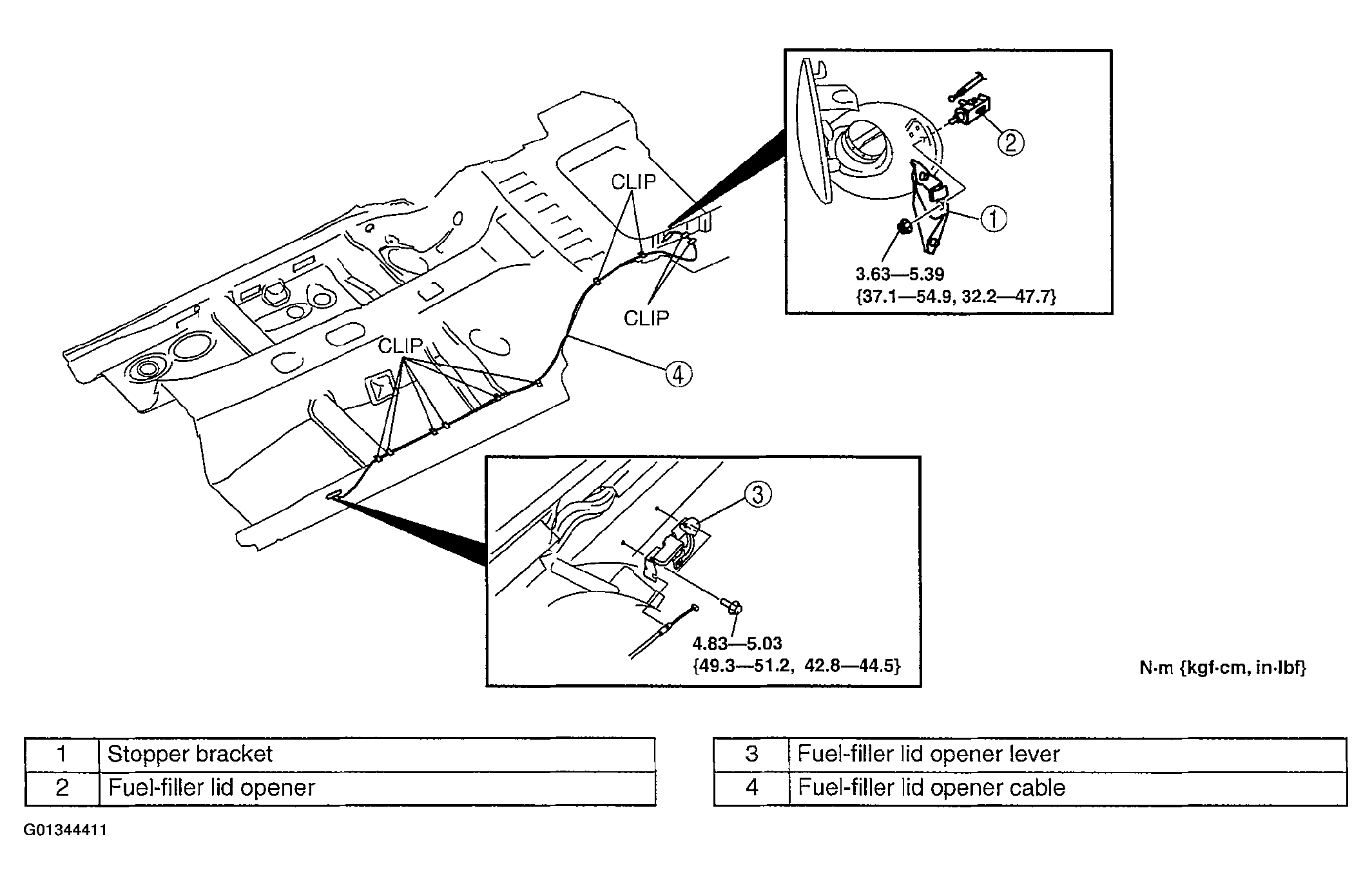

    Fig 1: Removing/Installing Fuel-Filler Lid Opener
    G01344411Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
  6. Adjust the fuel-filler lid. (See FUEL-FILLER LID ADJUSTMENT .)
