Valve Train Components - Exploded View

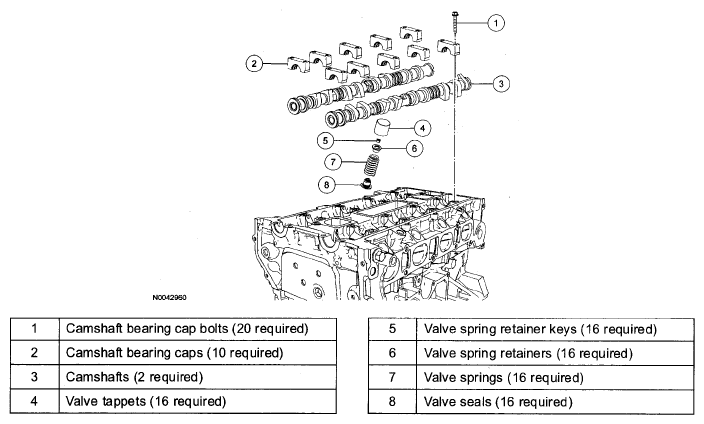

Fig 1: Valve Train Components - Exploded View

G04929118

Courtesy of MAZDA MOTORS CORP.
