Engine Front Cover Removal / Installation - 2.3L: Notes

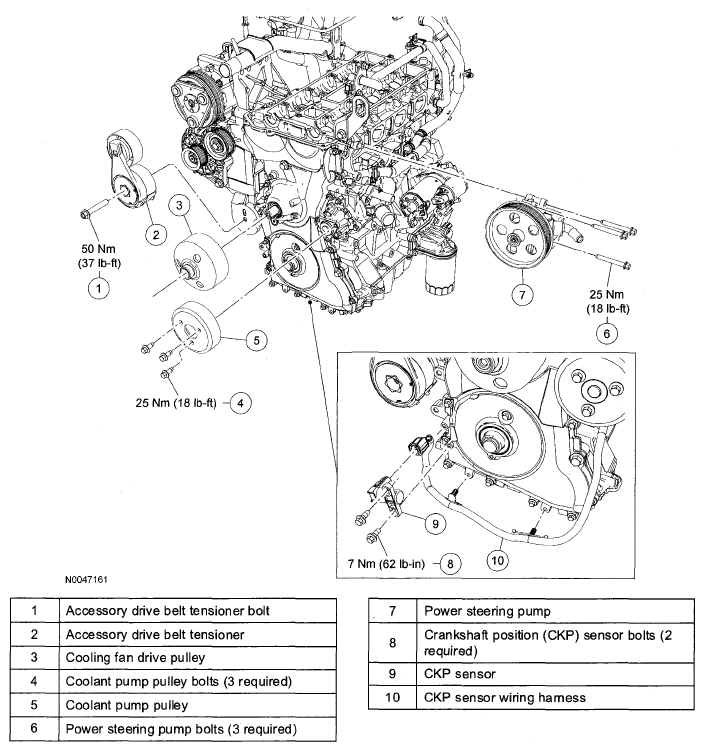

Fig 1: Engine Front Cover Replacement Components With Torque Specifications - 2.3L (1 Of 2)
G04929151Courtesy of MAZDA MOTORS CORP.

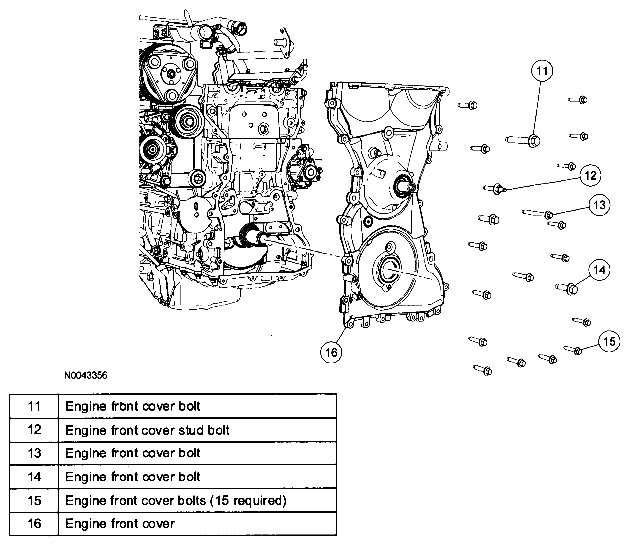

Fig 2: Identifying Engine Front Cover Components - 2.3L (2 Of 2)
G04929152Courtesy of MAZDA MOTORS CORP.
