Lower Engine Block

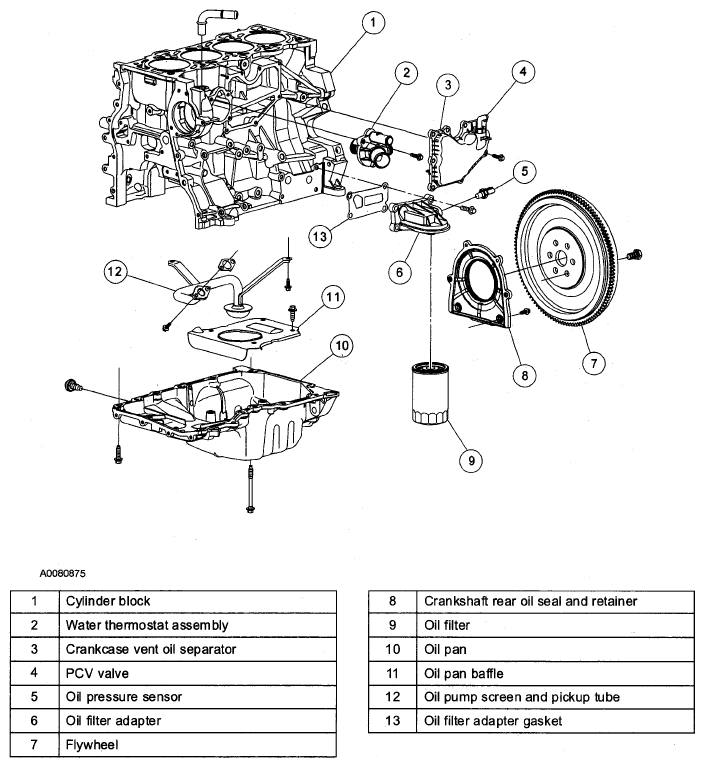

Fig 1: Disassembling View Of Lower Engine Block

G04929266

Courtesy of MAZDA MOTORS CORP.
