Front Engine Block

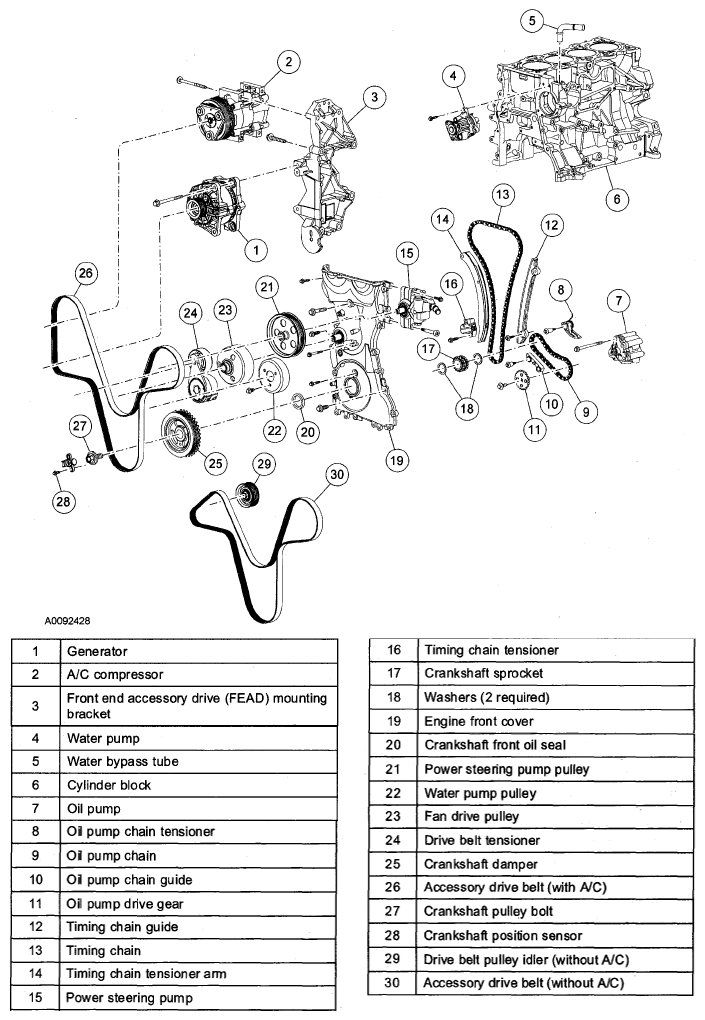

Fig 1: Disassembling View Of Front Engine Block

G04929267

Courtesy of MAZDA MOTORS CORP.
