4TH Gear Adjustment Shim Assembly Note

Install the 4th gear adjustment shim washer.
Measure length C2 as shown in the figure.
- If it is not within the specification, adjust it by selecting a proper 4th gear adjustment shim from below.
- Select only one 4th gear adjustment shim.
Specification
1. C2: 173.85-173.95 mm {6.844-6.848 in}

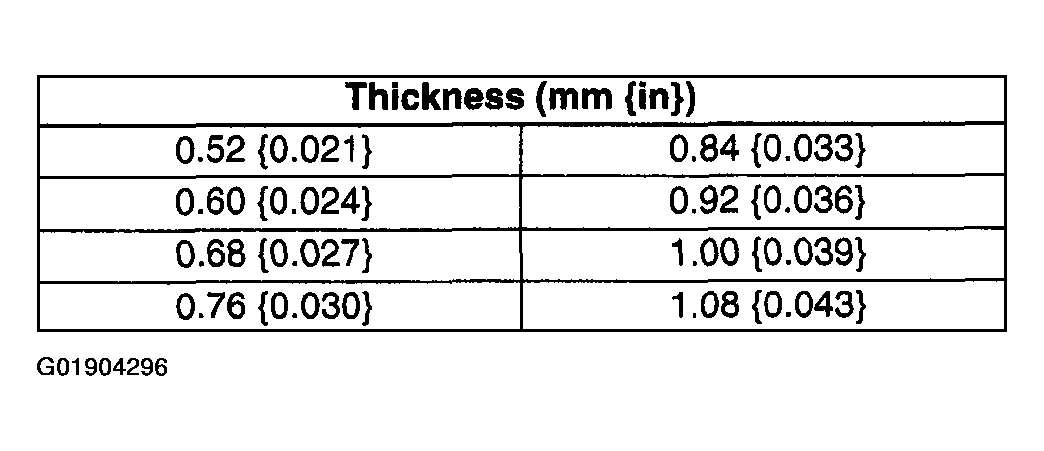

Fig 1: Available 4th Gear Adjustment Shim Sizes

Courtesy of MAZDA MOTORS CORP.

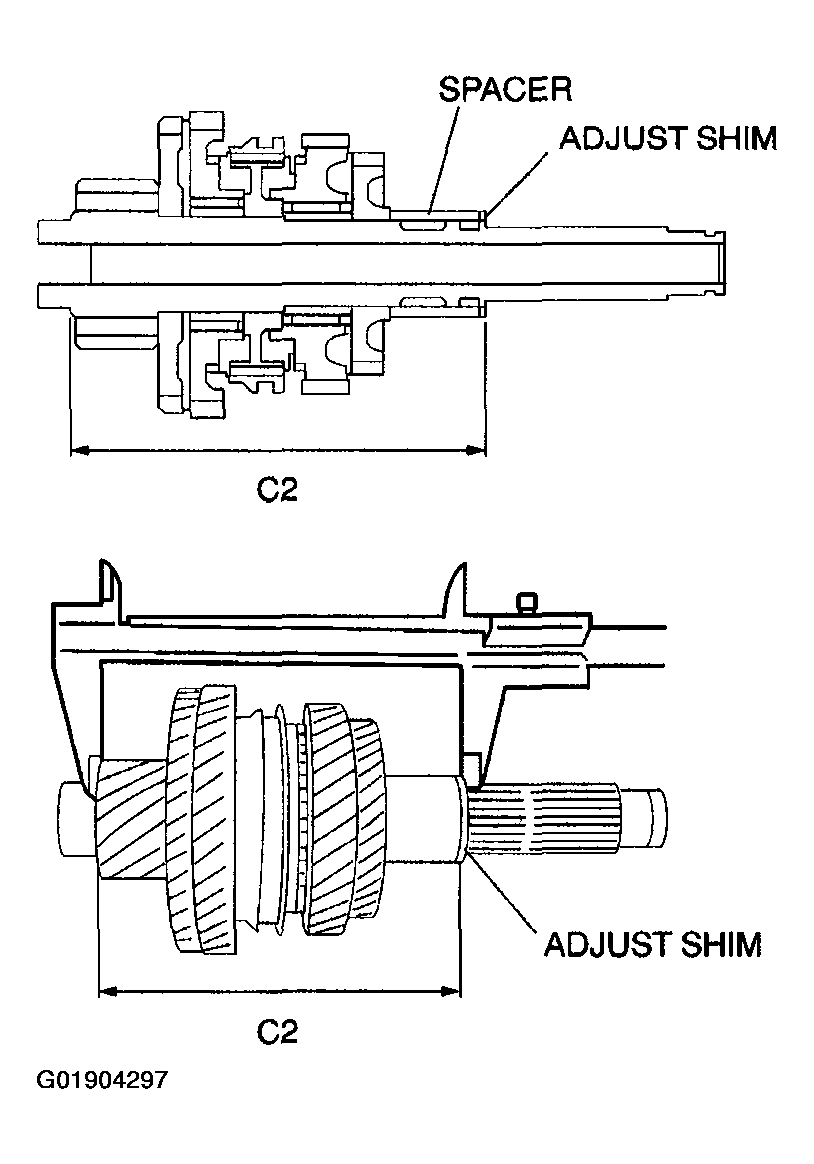

Fig 2: Measuring Length C2

Courtesy of MAZDA MOTORS CORP.
