Reverse Idler Shaft Components Disassembly/Assembly

  1. Disassemble in the order shown in the figure.

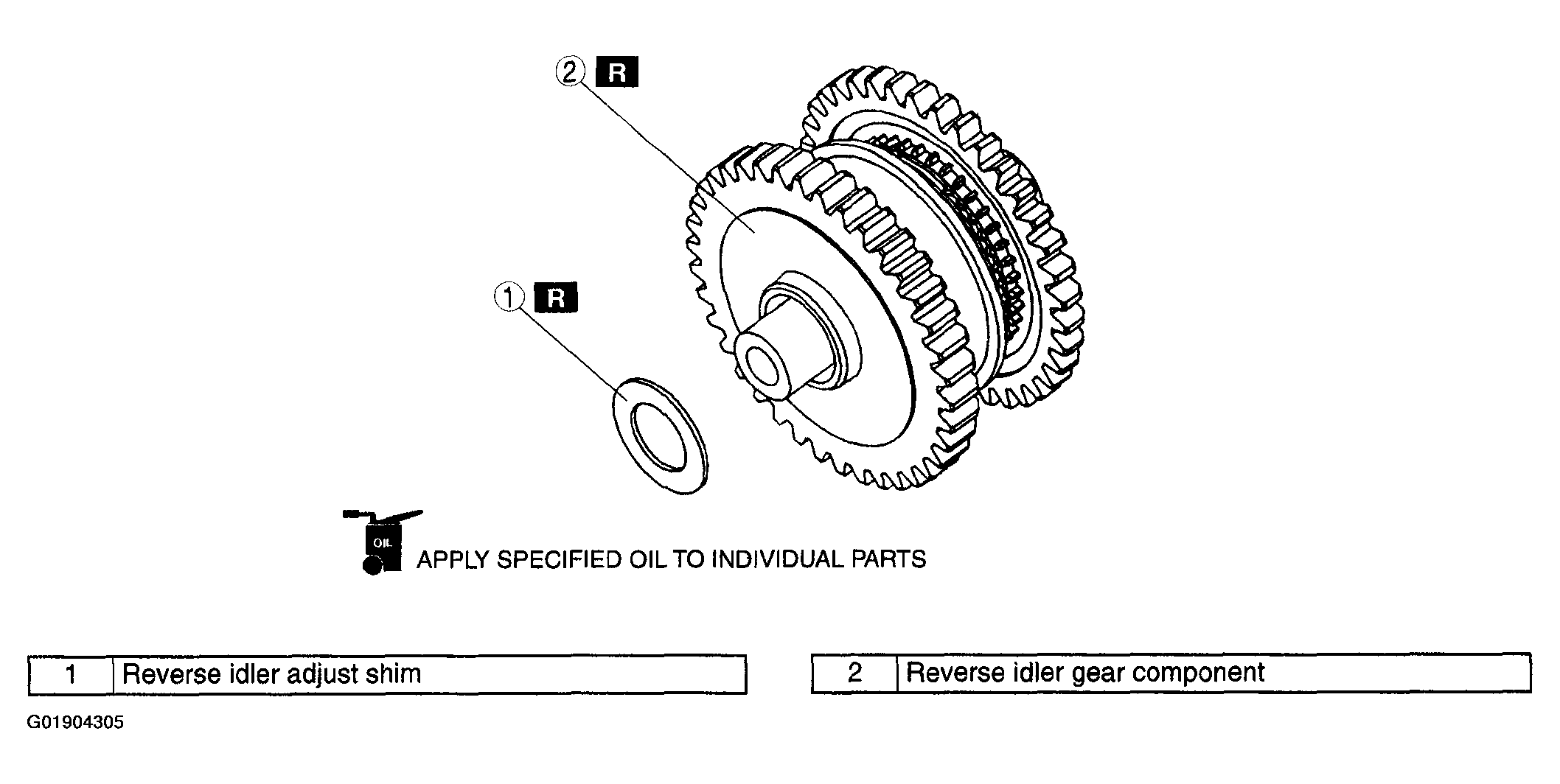

    Fig 1: Disassembling/Assembling Reverse Idler Shaft Components
    G01904305Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
