Primary Shaft Rear Bearing Assembly Note

  1. Place the primary shaft rear bearing with the brown side facing toward the 5th gear.
  2. Install the primary shaft rear bearing using the SSTs  .

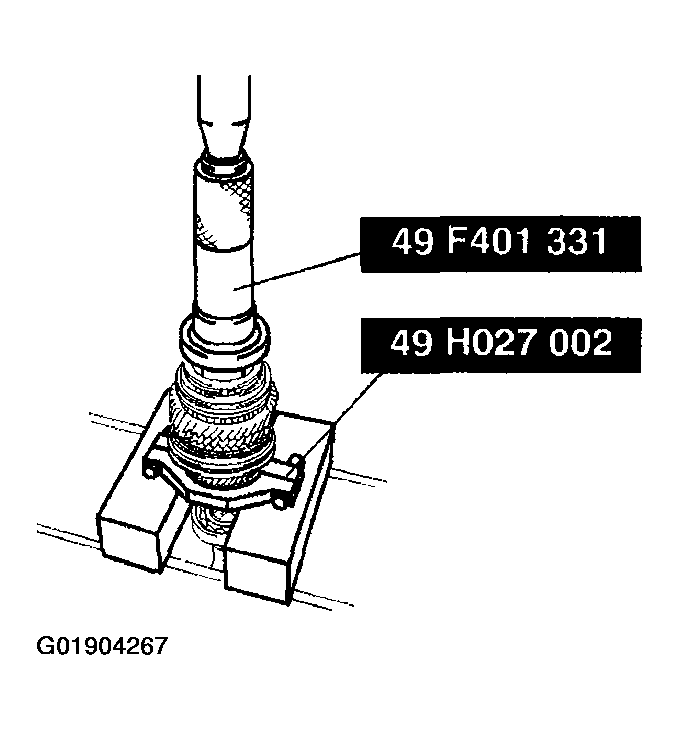

    Fig 1: Installing Primary Shaft Rear Bearing
    G01904267Courtesy of MAZDA MOTORS CORP.
