Backlash Inspection

Measure the backlash of the side gear.
- If not as specified, replace parts as necessary.
Standard
1. 0.10-0.20 mm {0.0039-0.0079 in}

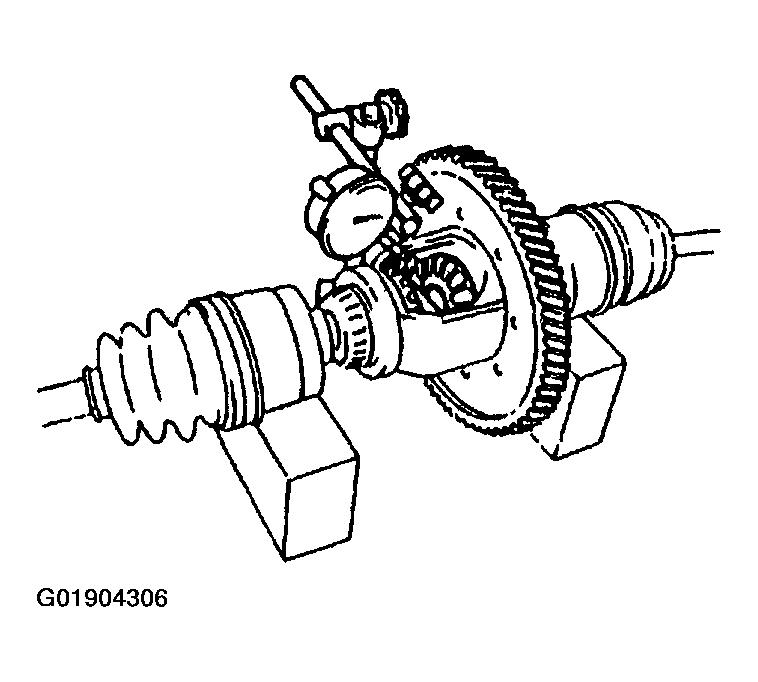

Fig 1: Measuring Side Gear Backlash

Courtesy of MAZDA MOTORS CORP.
