Oil Seal, Inner Guide Disassembly Note

  1. Set the SSTs  into the valve side.
  2. Install the SST  to the gear housing.
  3. Press out the oil seal and inner guide.

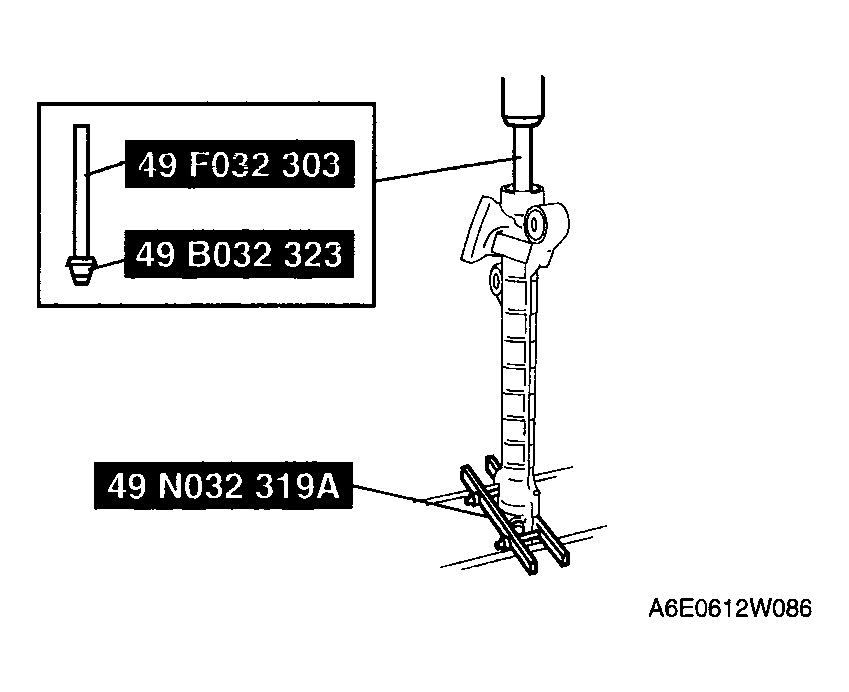

    Fig 1: Removing Oil Seal And Inner Guide
    G04326549Courtesy of MAZDA MOTORS CORP.
