Oil Seal Assembly Note

  1. Apply grease to a new oil seal.
  2. Press in the new oil seal using the SSTs  .

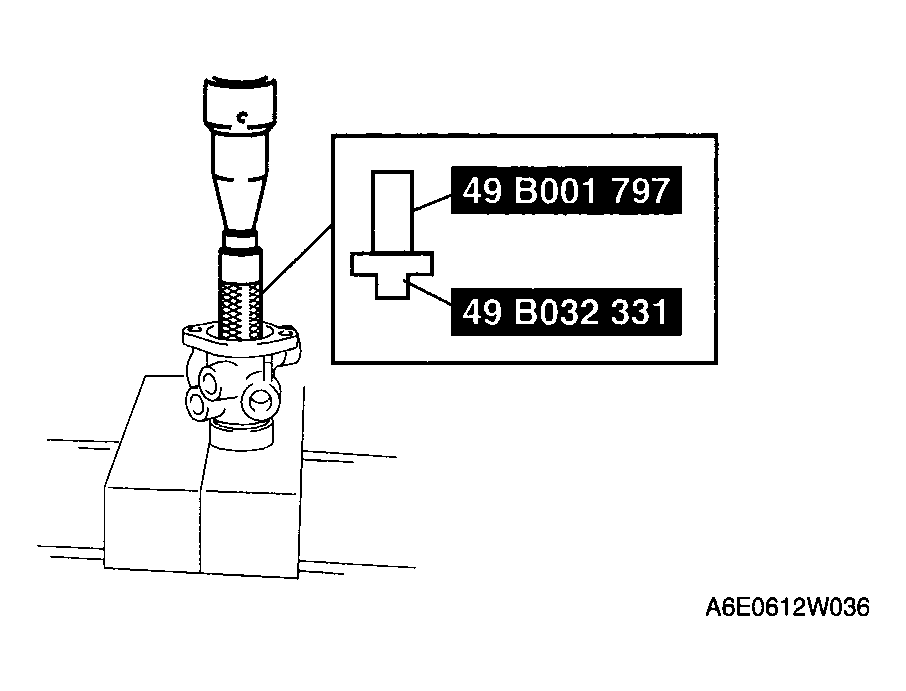

    Fig 1: Assembling Oil Seal Using SSTs
    G04326562Courtesy of MAZDA MOTORS CORP.
