DTC B1992, B1993, B1994, B1995: Notes
DTC B1992, B1993, B1994, B1995 DETECTION CONDITION AND POSSIBLE CAUSES
| DTC |
B1992 |
Driver-side side air bag module system circuit short to power supply |
| B1993 |
Driver-side side air bag module system circuit short to ground |
| B1994 |
Driver-side side air bag module system resistance high |
| B1995 |
Driver-side side air bag module system resistance low |
| DETECTION CONDITION |
WARNING:
- Detection conditions are for understanding DTC outline before performing inspection. Performing inspection with only detection conditions may cause injury due to operating error or damage the system. When performing inspection, always follow inspection procedure.
- Abnormal resistance (other than 1.4-3.2 ohms
) detected in driver-side side air bag module circuit

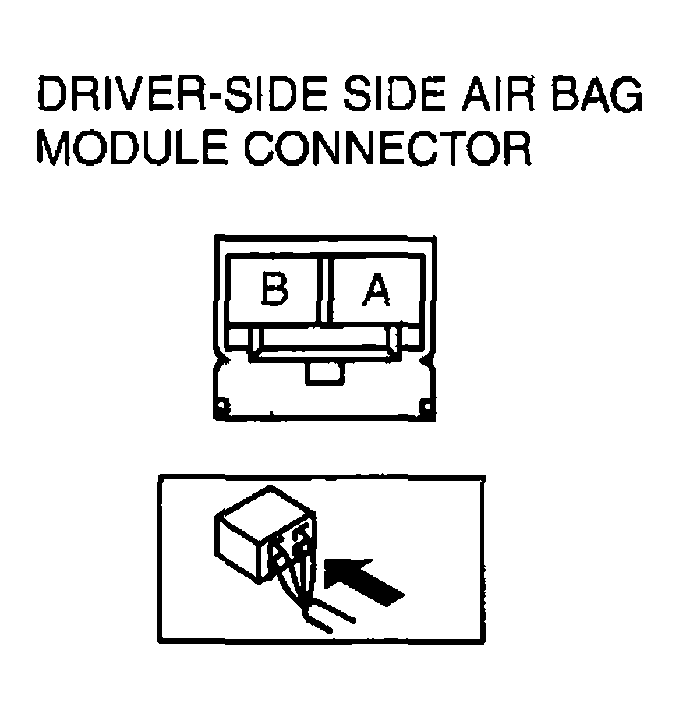

- Malfunction in wiring harness between driver-side side air bag module and SAS control module
|
| POSSIBLE CAUSE |
- Open or short circuit in wiring harness between driver-side side air bag module and SAS control module
- Driver-side side air bag module malfunction
- SAS control module malfunction
|
|
|
