Resistor Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the glove compartment.
  3. Remove in the order indicated in the table.

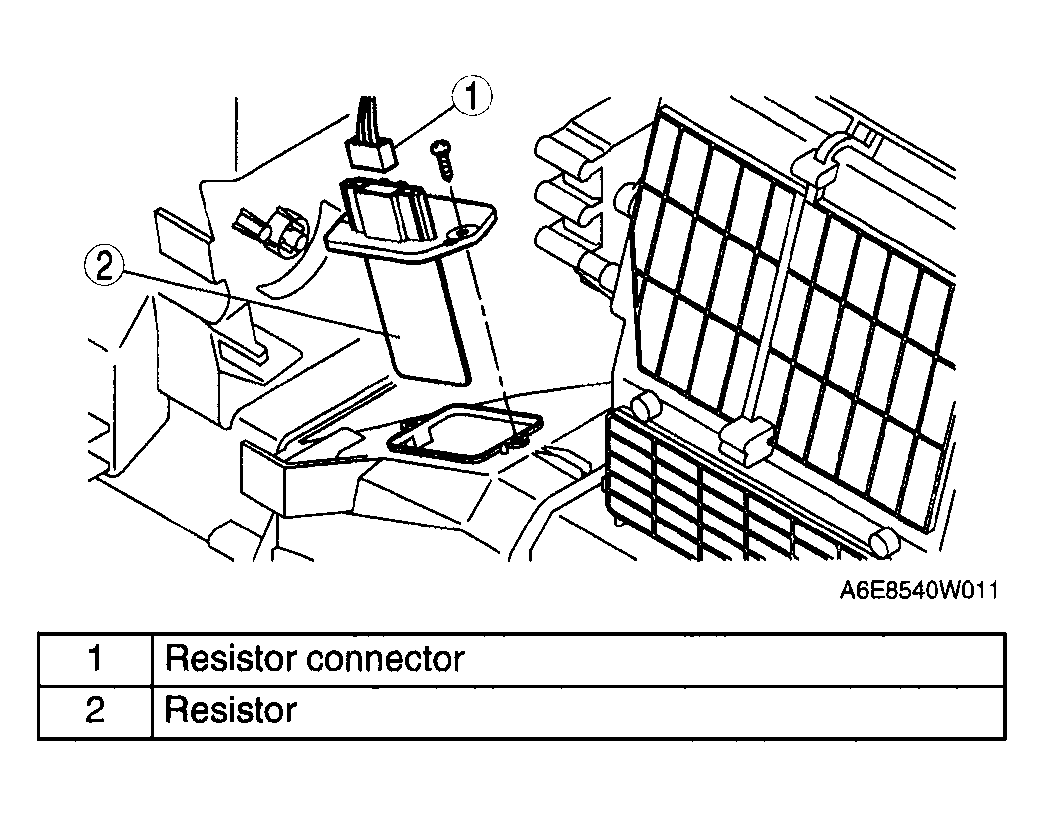

    Fig 1: Locating Resistor
    G04326775Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
