Resistor Inspection

  1. Verify that the resistance between the terminals of the resistor is as shown in the table.
    • If not as specified, replace the resistor.
      RESISTOR RESISTANCE SPECIFICATIONS

      Terminal Resistance (ohm)
      A-D 0.25
      A-B 0.85
      A-C 2.70

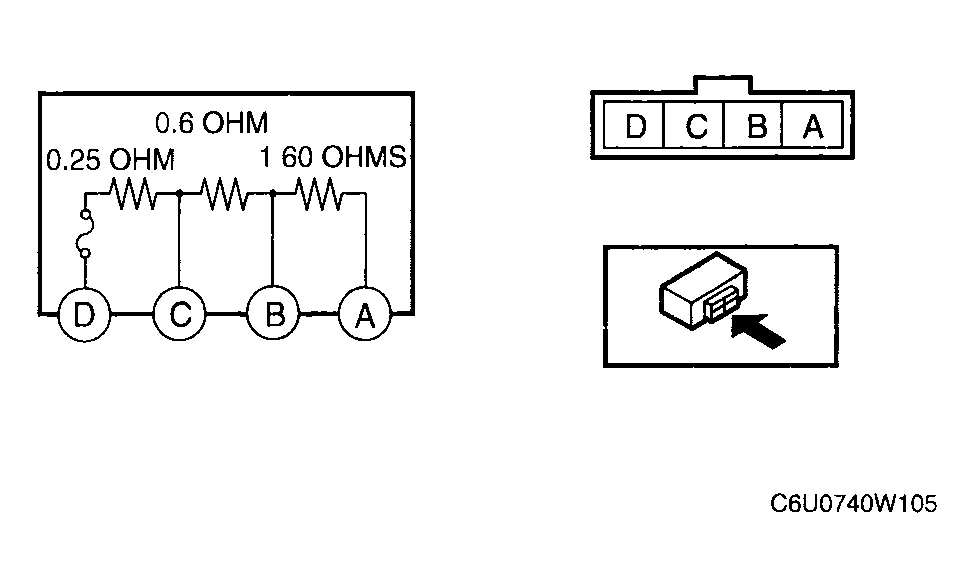

      Fig 1: Inspecting Resistor
      G04326776Courtesy of MAZDA MOTORS CORP.
