Refrigerant Pressure Switch Removal/Installation [L3 With TC]: Notes

  1. Remove the battery.
  2. Discharge the refrigerant from the system. See REFRIGERANT RECOVERY. See REFRIGERANT CHARGING [L3 WITH TC].
  3. Loosen the refrigerant pressure switch using two spanners.
  4. Remove in the order indicated in the table.

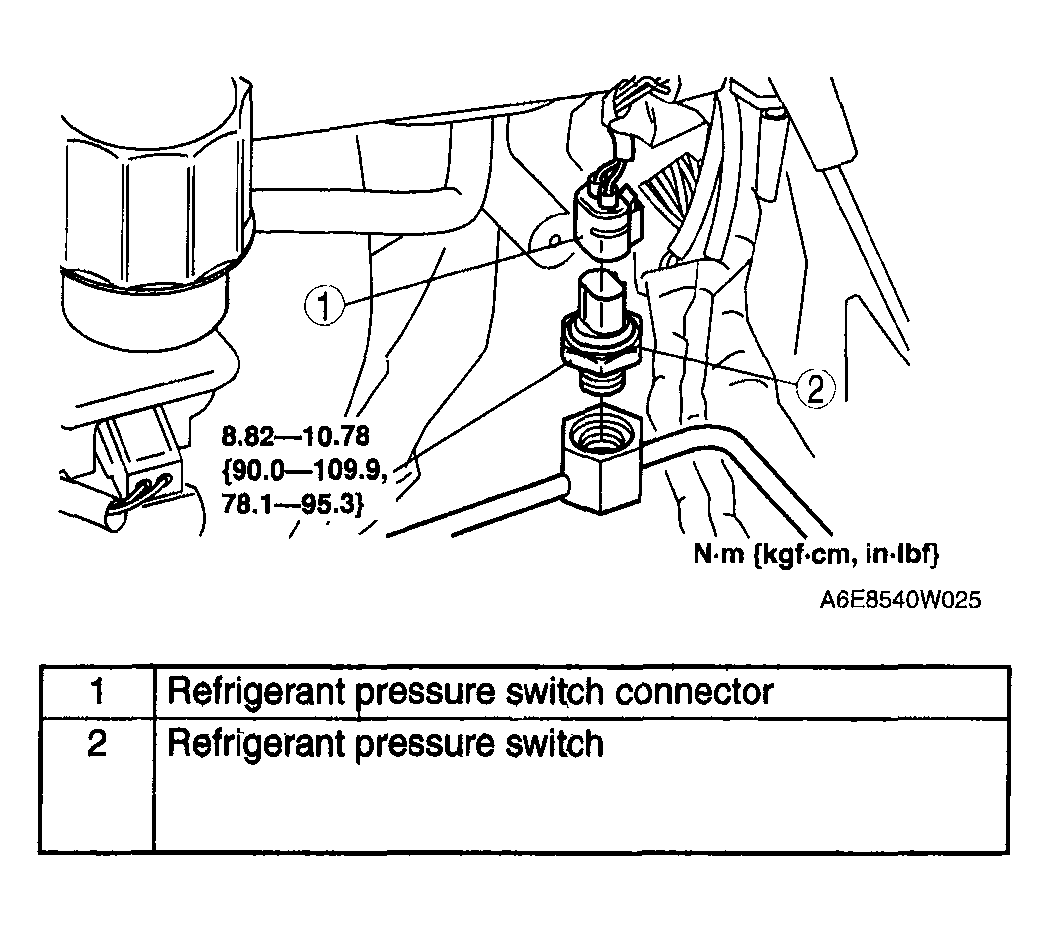

    Fig 1: Locating Refrigerant Pressure Switch & Torque Specifications (L3 With TC)
    G04326810Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
