Control System Location Index [L3, AJ]

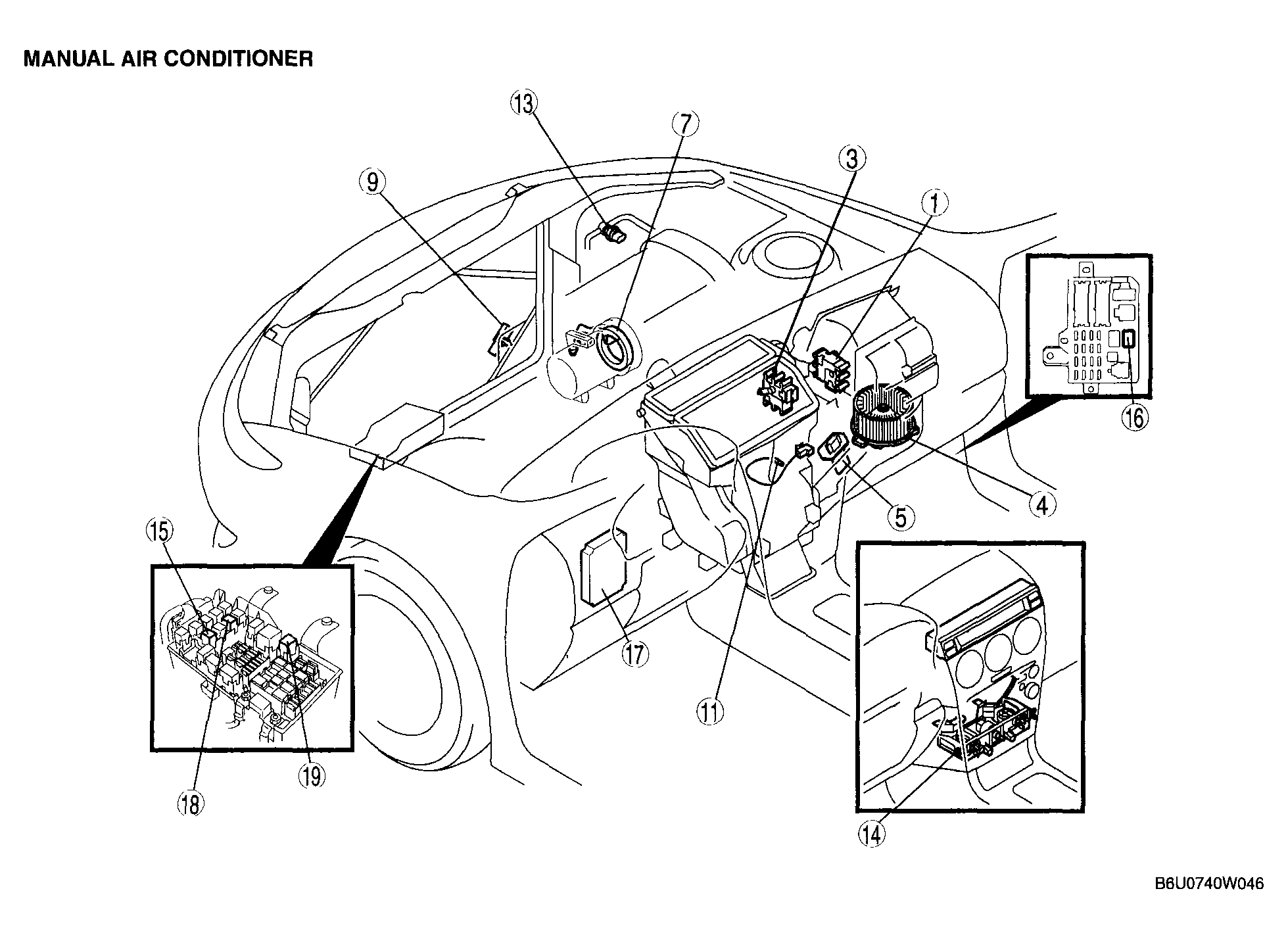

Fig 1: Locating Manual Air Conditioner Control System Components (L3, AJ)
G04326747Courtesy of MAZDA MOTORS CORP.

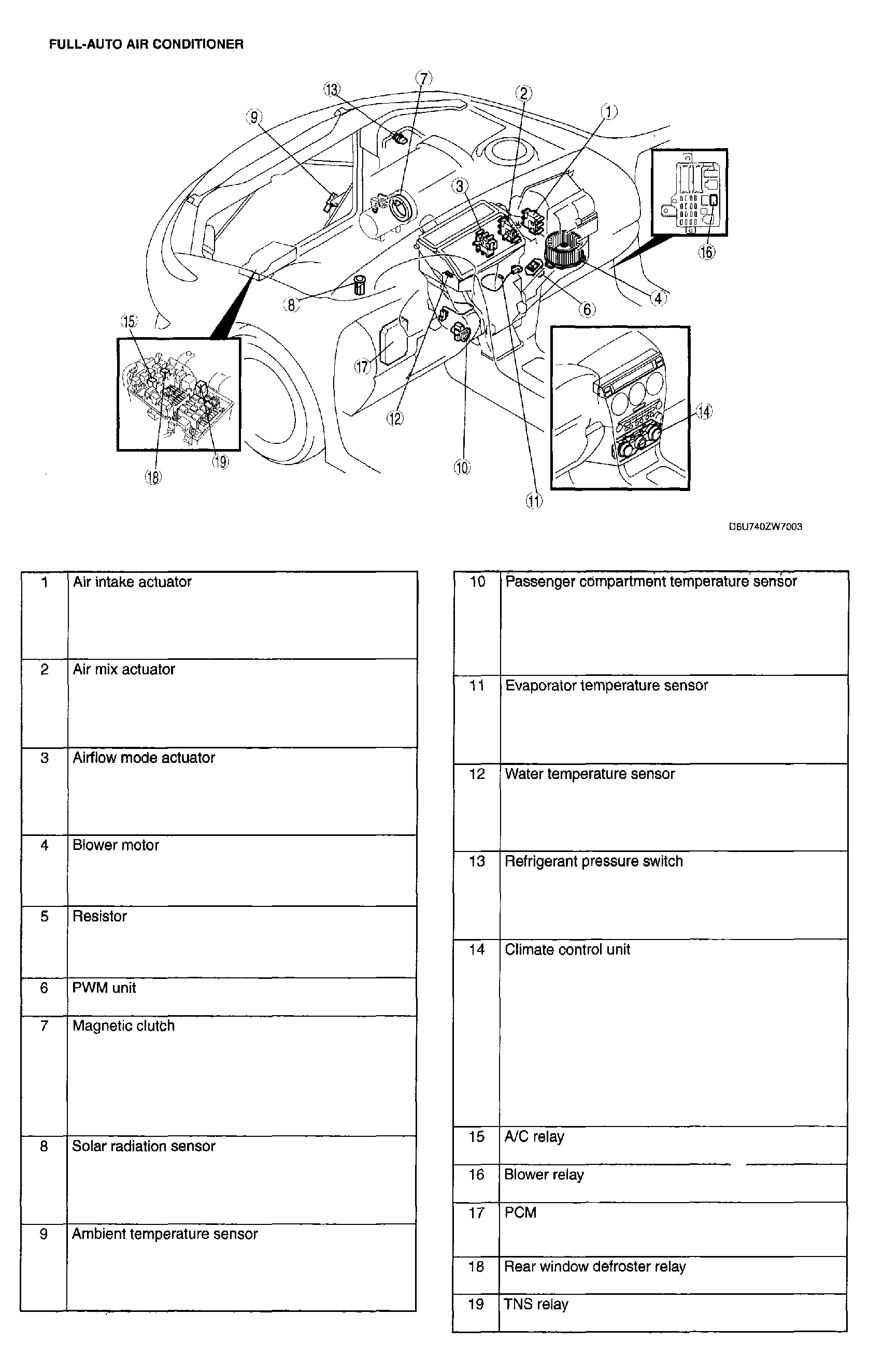

Fig 2: Locating Full-Auto Air Conditioner Control System Components (L3, AJ)
G04326748Courtesy of MAZDA MOTORS CORP.
