Condenser Removal/Installation [L3 With TC]: Notes

  1. Disconnect the, negative battery cable.
  2. Discharge the refrigerant from the system. (See REFRIGERANT RECOVERY. ) (See REFRIGERANT CHARGING [L3 WITH TC]. )
  3. Remove the shroud panel. (See SHROUD PANEL REMOVAL/INSTALLATION. )
    CAUTION:
    • If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur, Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign material out of the cycle.
  4. Remove in the order indicated in the table. Do not allow compressor oil to spill.

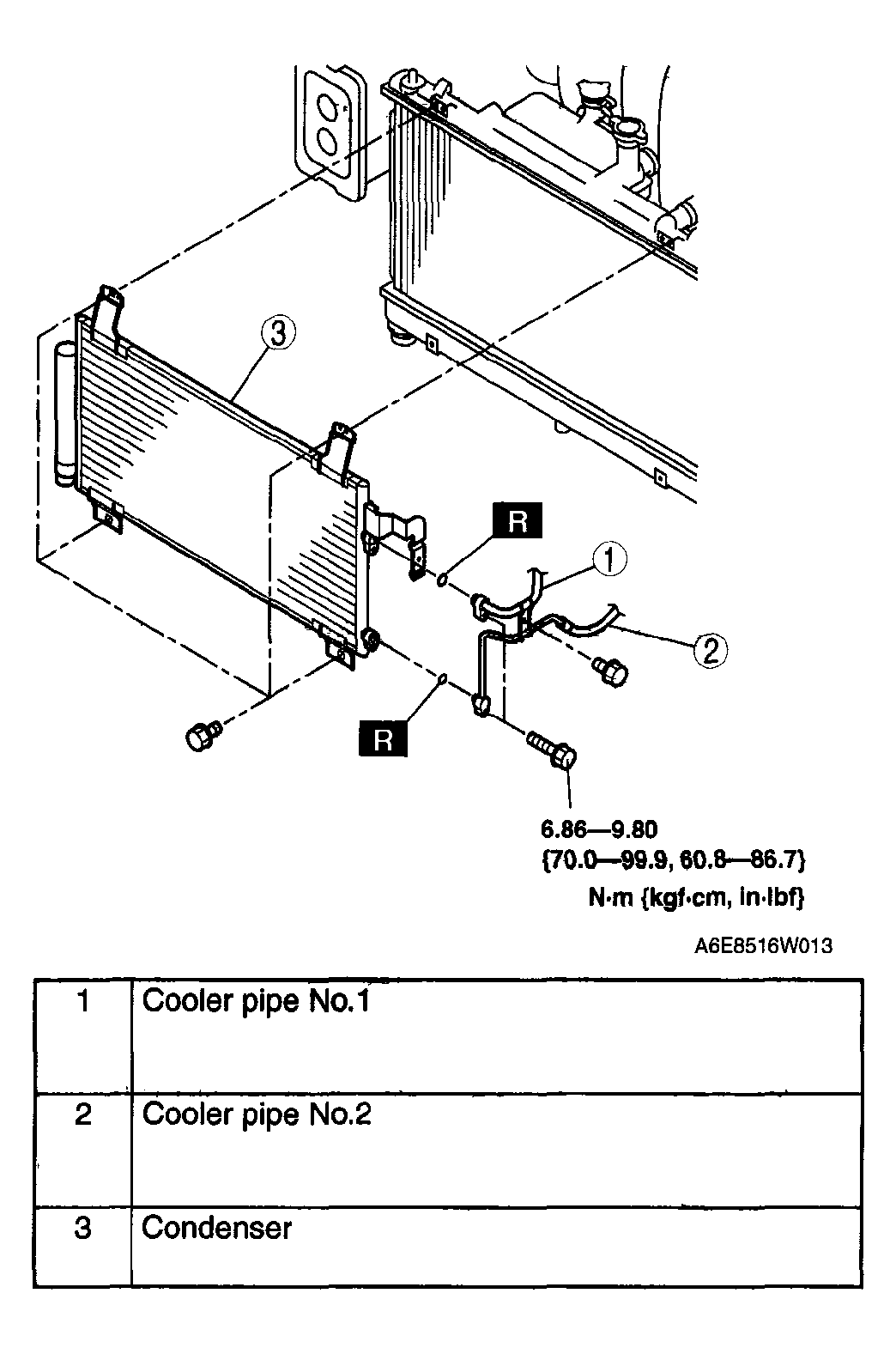

    Fig 1: A/C Condenser (L3 With TC) & Torque Specification
    G04326740Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
  6. Perform the refrigerant system performance test.

    (See REFRIGERANT SYSTEM PERFORMANCE TEST [L3 WITH TC]. )
