A/C Unit Disassembly/Assembly [L3 With TC]: Notes

  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

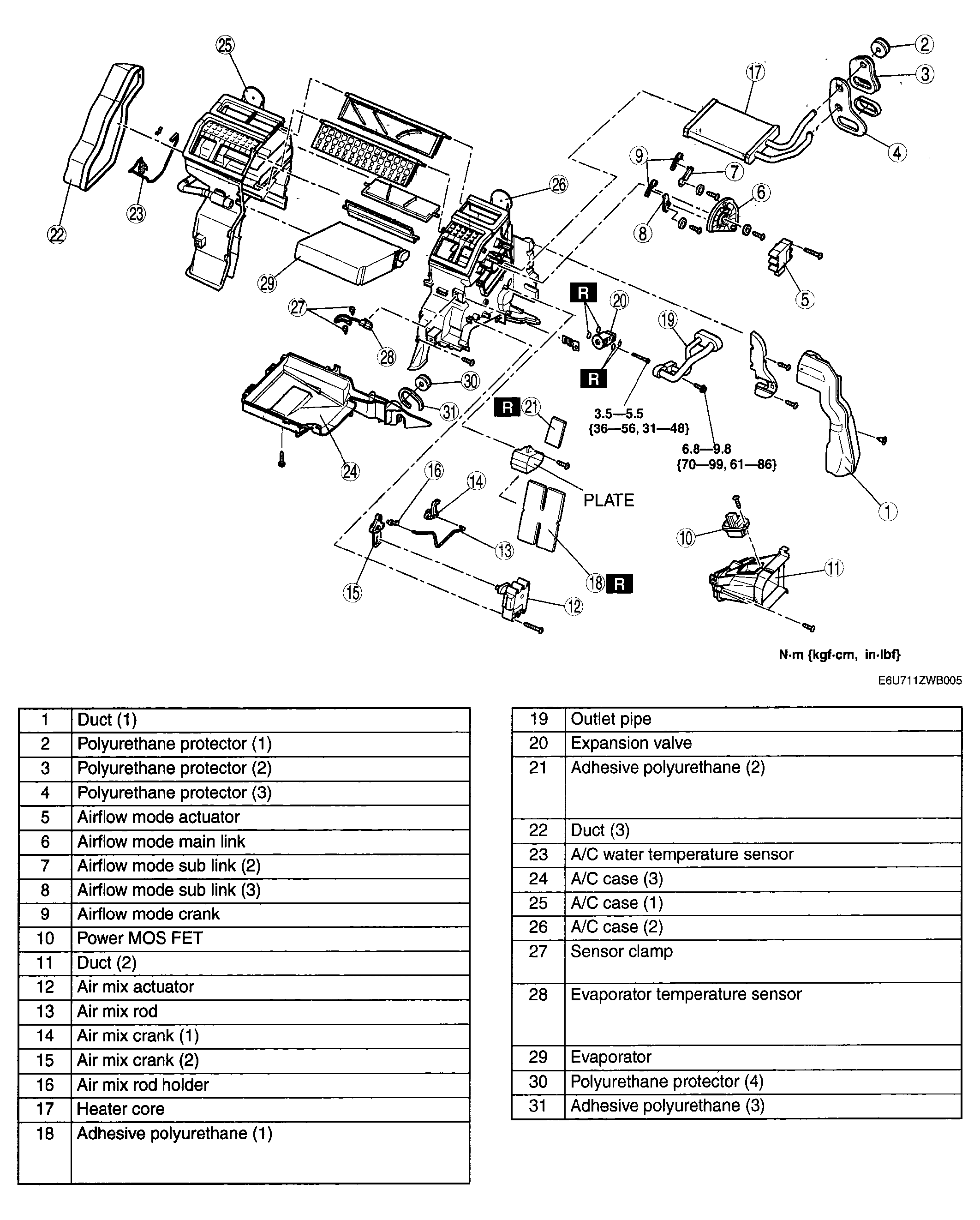

    Fig 1: Exploded View Of A/C Unit (L3 With TC) & Torque Specification
    G04326725Courtesy of MAZDA MOTORS CORP.
