Evaporator Temperature Sensor Assembly Note

  1. Assemble the evaporator temperature sensor as shown in the figure.

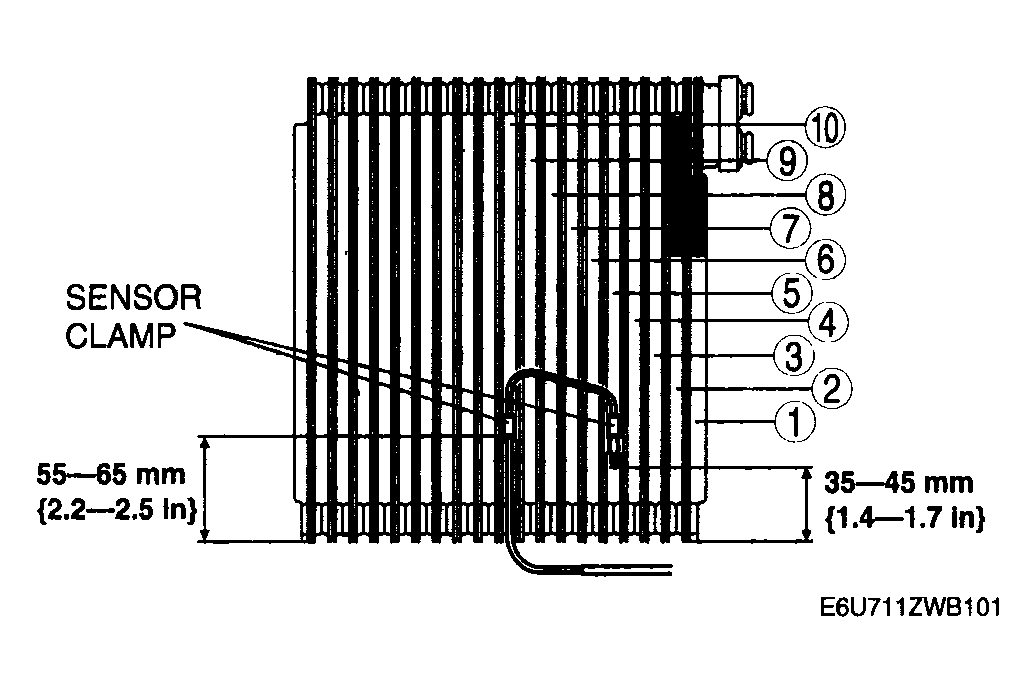

    Fig 1: Evaporator Temperature Sensor
    G04326726Courtesy of MAZDA MOTORS CORP.
