Master Cylinder Removal/Installation [LF, L3]: Notes

WARNING: This page is about a different car, the 2008 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [LF, L3] .)
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

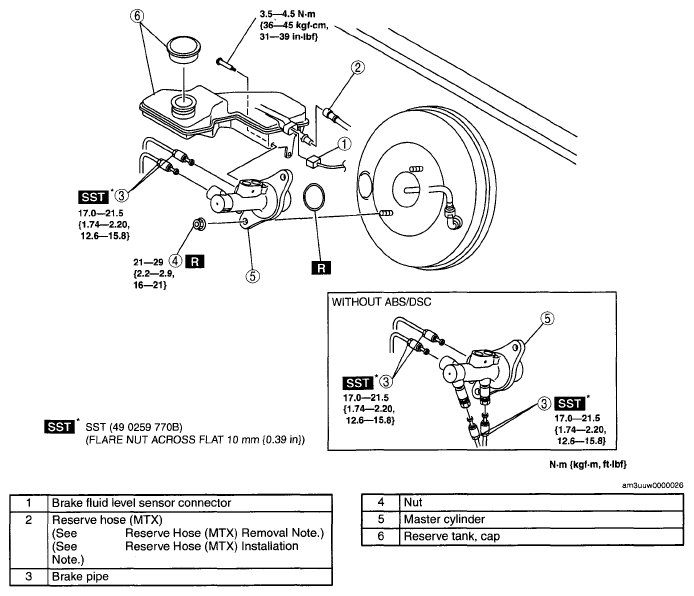

    Fig 1: Master Cylinder Replacement Components With Torque Specifications
    G04955656Courtesy of MAZDA MOTORS CORP.
