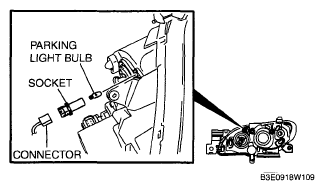

Parking Light Bulb Removal/Installation
WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Disconnect the connector.
- Remove the socket, then remove the parking light bulb.
- Install in the reverse order of removal.
Courtesy of MAZDA MOTORS CORP.
