Wiper And Washer Switch Removal/Installation

WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Front scuff plate (Driver's side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Front side trim (Driver's side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Hood release lever (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
    4. Lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
    5. Column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
  3. Disconnect the wiper and washer switch connector.
  4. Remove the screws, then remove the wiper and washer switch.
  5. Install in the reverse order of removal.

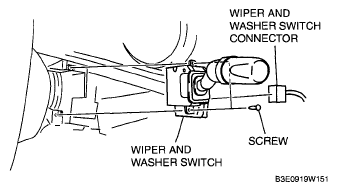

    Fig 1: Identifying Wiper And Washer Switch
    G04957084Courtesy of MAZDA MOTORS CORP.
