Washer Tank Removal/Installation

WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
  3. Disconnect the windshield washer motor connector and windshield washer hose.

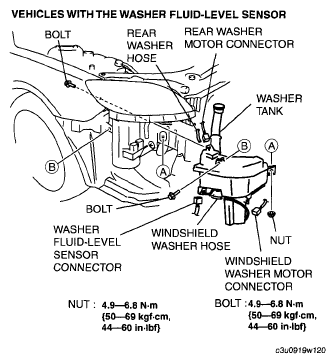

    Fig 1: Windshield Washer Tank (With Fluid Level Sensor) With Torque Specification
    G04957073Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the rear washer motor connector and rear washer hose. (5 door)
  5. Disconnect the washer fluid-level sensor connector. (Vehicles with the washer fluid-level sensor)
  6. Remove the bolts and nut, then remove the washer tank.
  7. Install in the reverse order of removal.

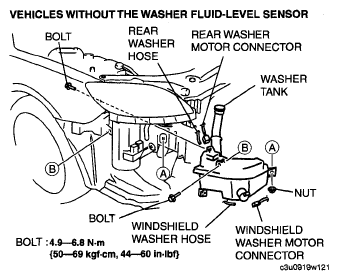

    Fig 2: Windshield Washer Tank (Without Fluid Level Sensor) With Torque Specification
    G04957074Courtesy of MAZDA MOTORS CORP.
