Door Lock Striker Removal/Installation

WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws, then remove the door lock striker.
  2. Install in the reverse order of removal.
  3. Adjust the door. (See DOOR ADJUSTMENT .)

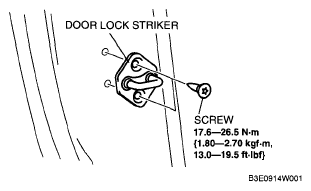

    Fig 1: Door Lock Striker & Torque Specification
    G04956833Courtesy of MAZDA MOTORS CORP.
