Rear Stabilizer Removal/Installation: Notes

WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.

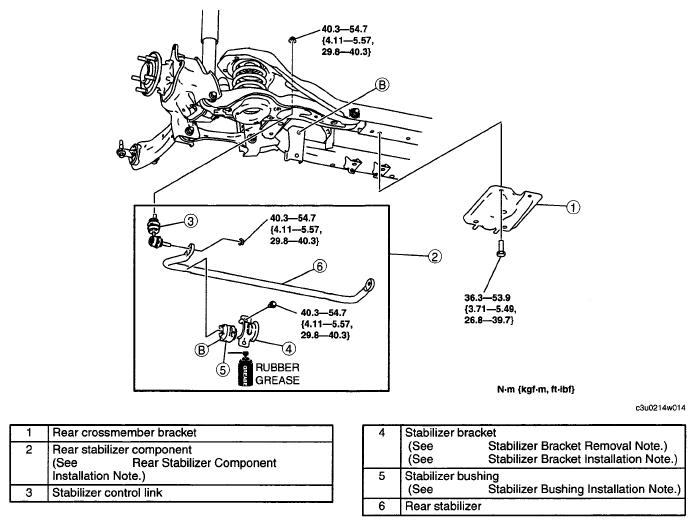

    Fig 1: Rear Stabilizer Replacement Components With Torque Specifications
    G04955502Courtesy of MAZDA MOTORS CORP.
