Rear Coil Spring Removal/Installation: Notes

WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear stabilizer. (See REAR STABILIZER REMOVAL/INSTALLATION ).
Remove in the order indicated in the table.
Install in the reverse order of removal.
Inspect the wheel alignment and adjust it if necessary. (See REAR WHEEL ALIGNMENT .)

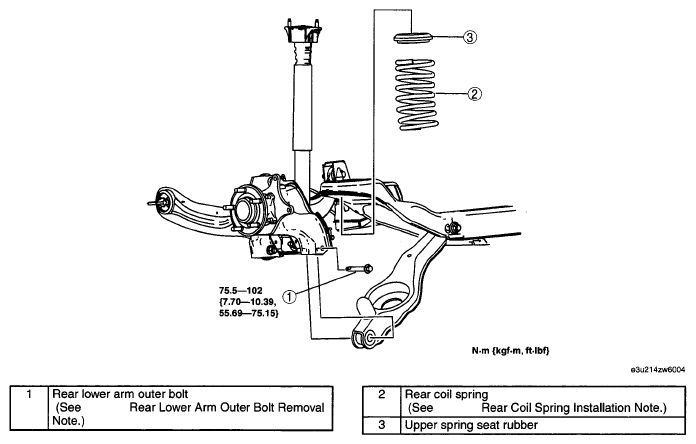

Fig 1: Rear Coil Spring Replacement Components With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
