Climate Control Unit Removal/Installation [Full-Auto Air Conditioner]

WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the ashtray panel.
Remove the console. (See CONSOLE REMOVAL/INSTALLATION .)
Remove the decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION .)
Remove the center panel module. (See CENTER PANEL UNIT REMOVAL/INSTALLATION .)
Release the left and right tabs and remove as shown in the figure.

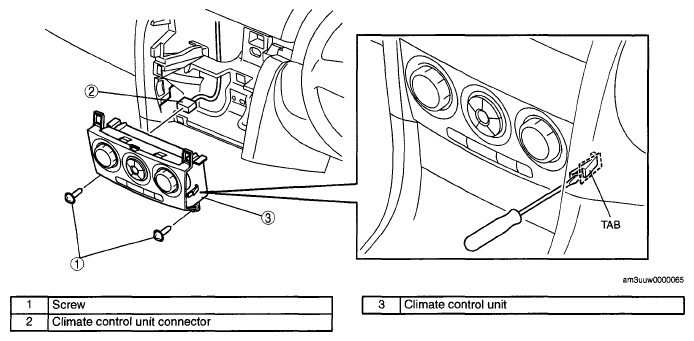

Fig 1: Identifying Climate Control Unit Connector
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
