Climate Control Unit Installation [Manual Air Conditioner]

WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wire clamp to the A/C unit.
  2. Set the temperature control dial at MAX COLD.
  3. Set the airflow mode selector dial at defroster.
  4. Install the E-rings to each position on the wires shown in the figure.

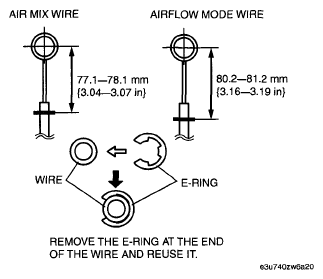

    Fig 1: Installing Climate Control Unit With Specifications
    G04956400Courtesy of MAZDA MOTORS CORP.
  5. Pass each wire through the following routes and connect to A/C unit.
  6. Connect the climate control unit connectors.
  7. Install the climate control unit.
  8. Adjust the climate control unit wires. (See CLIMATE CONTROL UNIT WIRE ADJUSTMENT ).
  9. Install the center panel module.
  10. Attach the PJB wiring harness clamp to dashboard.
  11. Install the following parts:
    1. Console (See CONSOLE REMOVAL/INSTALLATION .)
    2. PJB and PJB bracket. (See PASSENGER JUNCTION BOX (PJB) REMOVAL/INSTALLATION .)
    3. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    4. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    5. Lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
    6. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    7. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    8. Detach the hood release lever from the lower panel. (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
    9. Ashtray panel

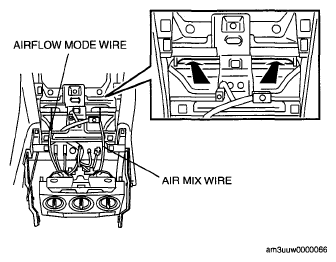

      Fig 2: Identifying Airflow Mode Wire And Air Mix Wire
      G04956401Courtesy of MAZDA MOTORS CORP.
  12. Connect the negative battery cable.
